12" Series 795 Channel Balance

Product Code: S795-12

12" Series 795 Channel Balance
$12.05/each
Quantity Price
1-11 $12.05
12-49 $10.85
50-99 $10.24
100-249 $9.64
250+ $9.04
Please Note: Bulk pricing applies only to purchases of the same option
Option:
Product Description
This is a series 795 block and tackle balance for tilt windows that moderates the operation of your window sash. It uses a specifically calibrated counter-balance system that allows the window to stay open when raised and remain shut when closed.
  • The metal channel is 12" long and 9/16" wide, though it's considered 1/2" wide in the trade.
  • Comes fully assembled with a top screw clip and bottom 15-195 T-Lock Balance Shoe with a Closed Cam. All other shoe styles are sold separately.
  • Used by International and other manufacturers.
  • All window balances are sold individually, not in pairs
  • Can work for either the left or right side of the window interchangeably.
  • Spring strength is denoted by the stamp option printed on the metal channel. If you do not have a stamp option, weigh the sash on a scale and refer to the chart below.
    • Stamp Option Sash Weight Range
    12C 10 to 16 lbs
    12D 16 to 18 lbs
    *This information is based on 2 balances per sash. Balances are designed assuming friction in the jamb weather-strip will carry a portion of the sash weight. Suggested sash weights are approximate.
Good Idea!
Balances are sold individually, however, it is a good idea to replace both window balances at the same time. Pairing a new balance with an old one would cause the new balance to wear out faster.
Helpful Tip!
The stamp option is a code that indicates how much weight a pair of balances can support. You can use the stamp on your original channel balance as a reference in most cases, or you can weigh your sash and refer to the chart above. If your sash's weight falls outside the weight ranges listed on that chart, or you are still unsure how to proceed, ask our experts for help.
Guides
  • Modifying the Series 795 Balance
    • Related Videos
    Related Item(s)
    26-021
    $1.97
    Pivot Bar, 2-1/2"
    26-366
    $3.77
    Vinyl Window Sash Pivot Bar
    15-194
    $2.05
    1" T-Lock Balance Shoe, Closed Cam
    15-195
    $1.92
    1-1/4" T-Lock Balance Shoe, Closed Cam
    15-195B
    $1.97
    1-1/4" T-Lock Balance Shoe, Open Cam
    19-043
    $0.74
    Block and Tackle Screw-in Clip
    15-229
    $1.97
    1-1/4" T-Lock Balance Shoe, Closed Cam
    Customer Questions & Answers
    Discussion Posts Last Post Date

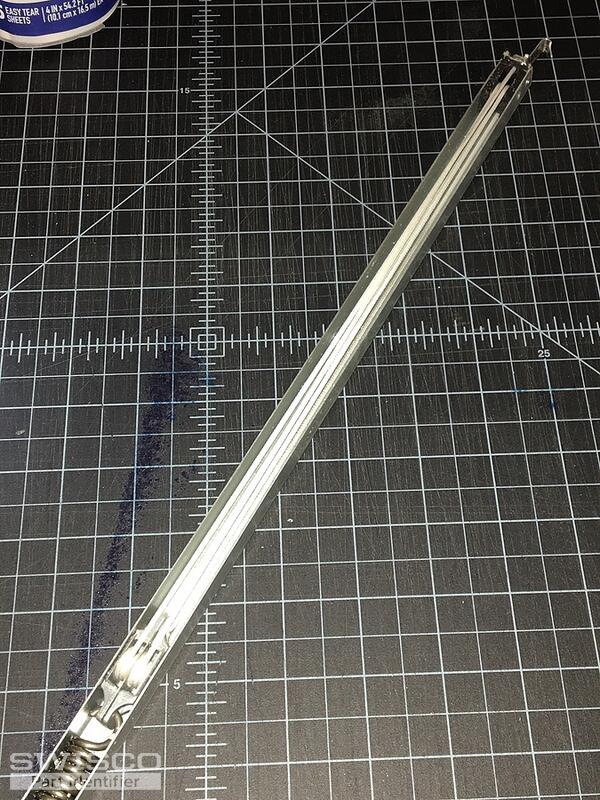

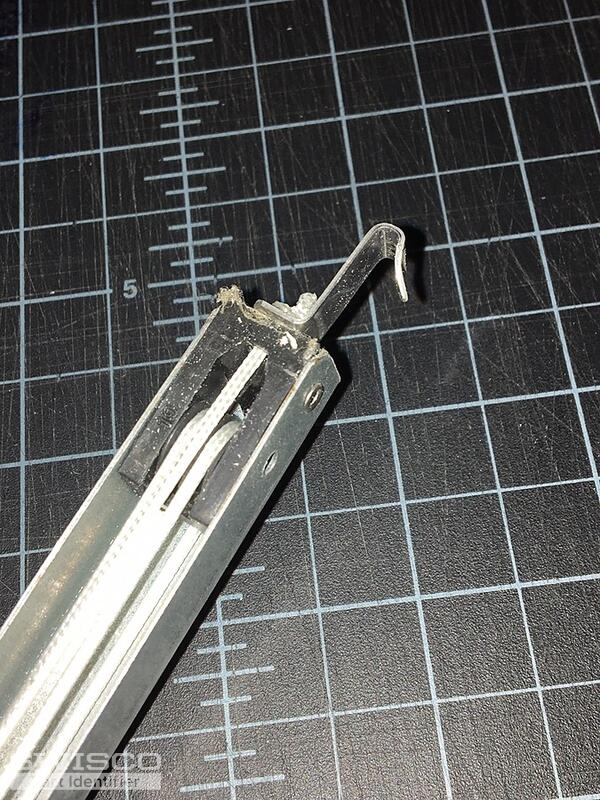

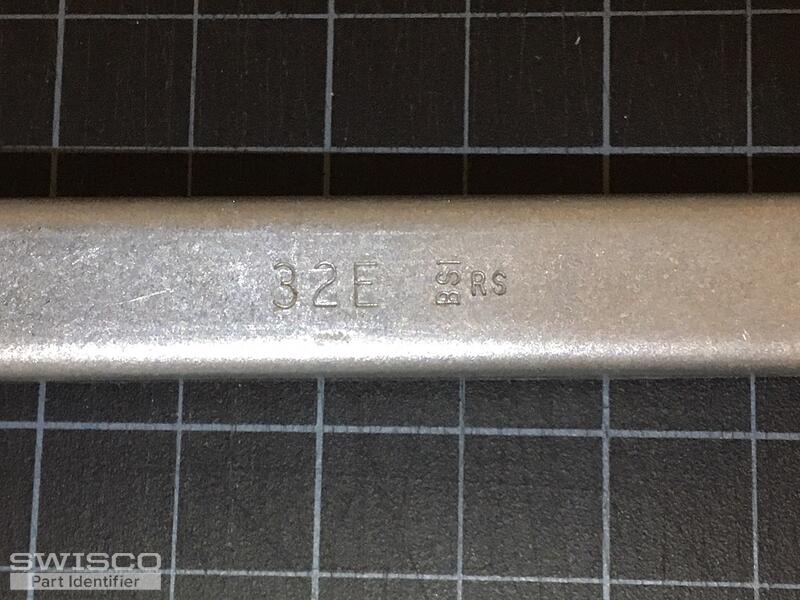

    32-inch channel balance (32E)
         		This discussion includes image(s). 5 Jun 25, 2021

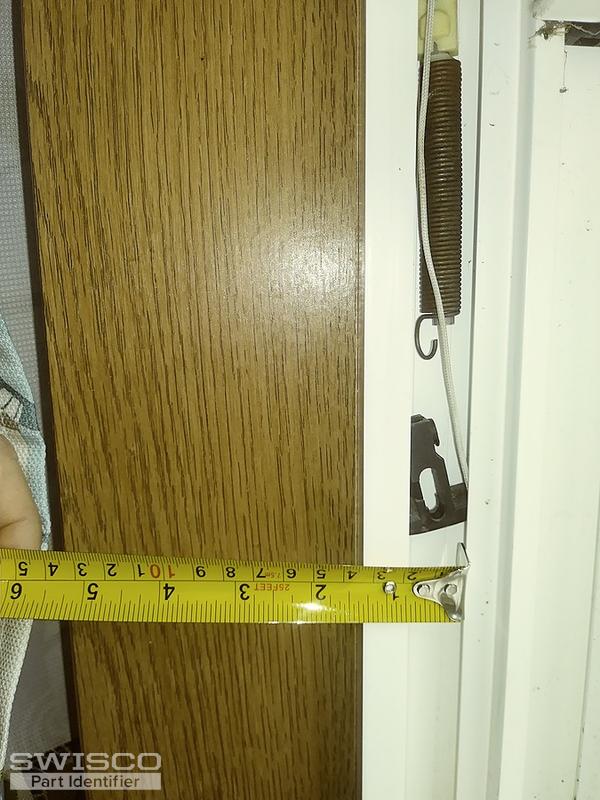

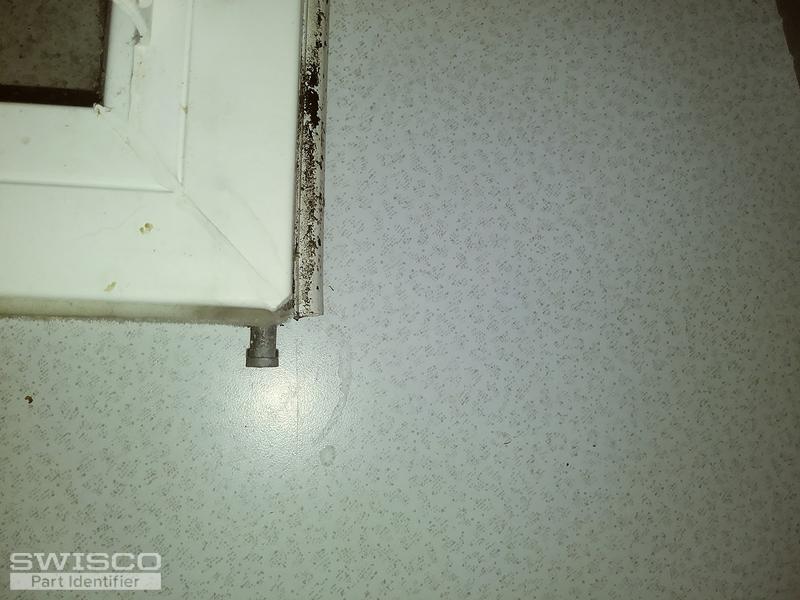

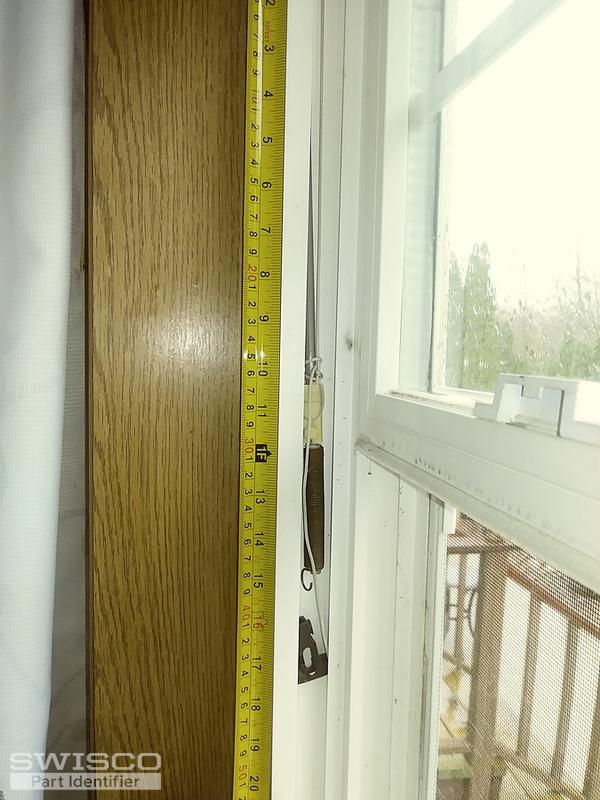

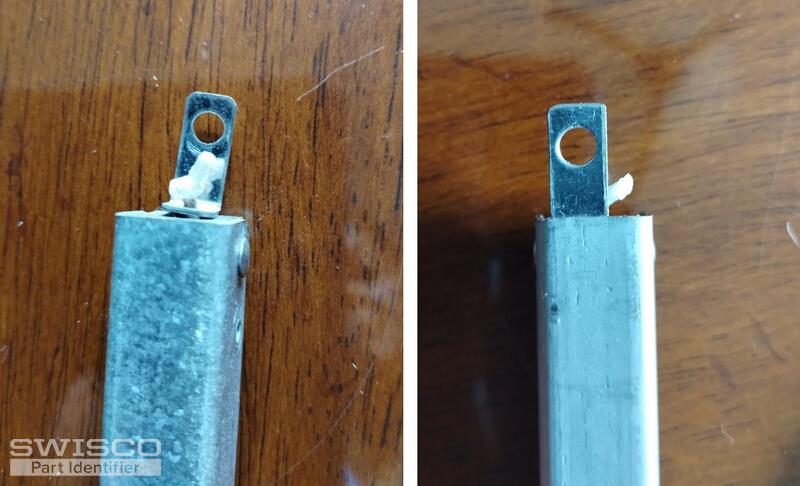

    Replacement Spring Balances for vinyl double hung tilt windows
         		This discussion includes video(s). This discussion includes image(s). 2 Mar 24, 2021
    Window identity
         		0 Apr 20, 2018
    Looking replacement part for a window
         		0 Apr 16, 2018

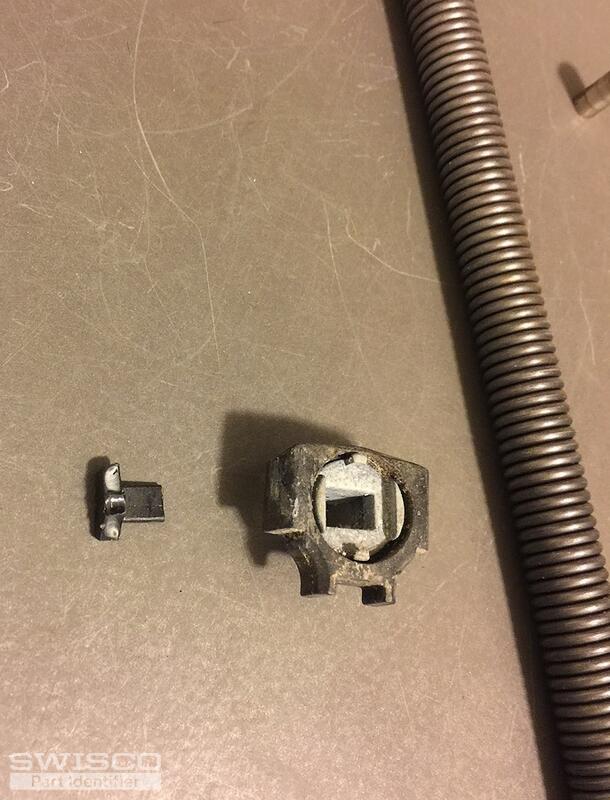

    broken window part
         		This discussion includes image(s). 0 Sep 9, 2017
    Tilt Window pivot lock shoe
         		This discussion includes image(s). 8 Sep 8, 2017
    Partriot Window Hardware
         		This discussion includes image(s). 2 Aug 30, 2017

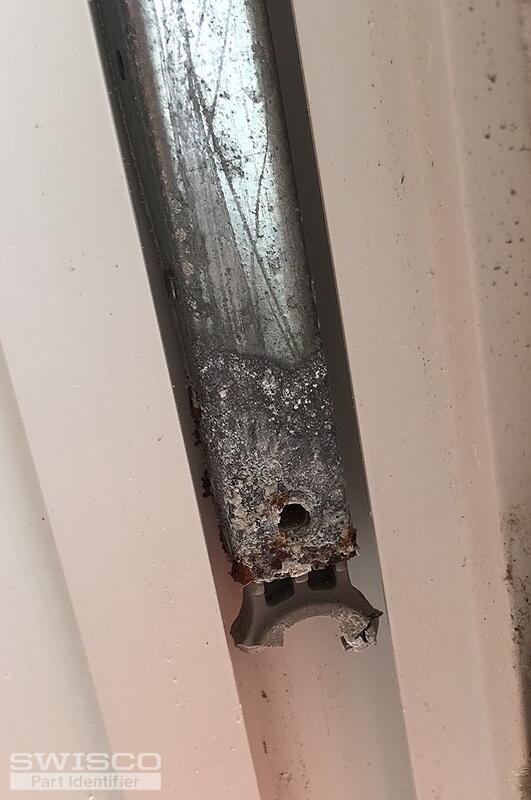

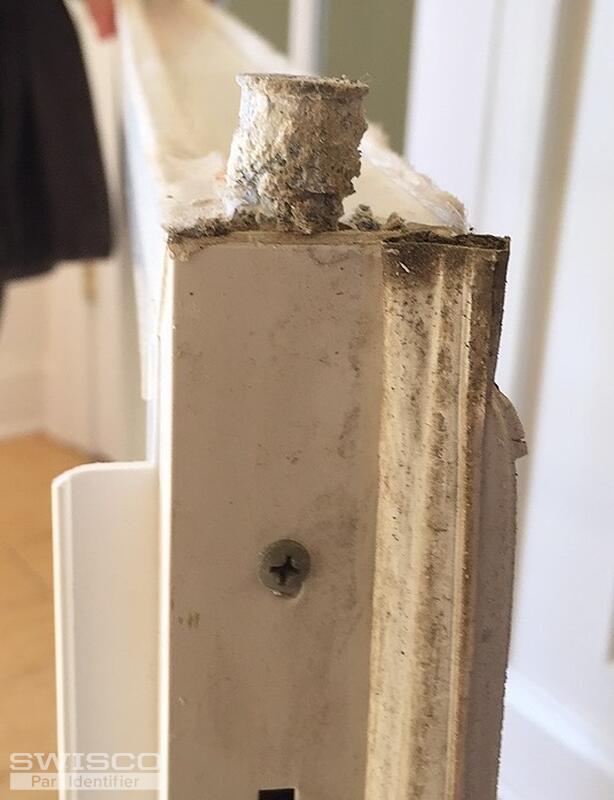

    Patriot balances
