21" Series 795 Channel Balance

Product Code: S795-21

21" Series 795 Channel Balance
$13.12/each
Quantity Price
1-11 $13.12
12-49 $11.81
50-99 $11.15
100-249 $10.50
250+ $9.84
Please Note: Bulk pricing applies only to purchases of the same option
Option:
Product Description
This is a series 795 block and tackle balance for tilt windows that moderates the operation of your window sash. It uses a specifically calibrated counter-balance system that allows the window to stay open when raised and remain shut when closed.
  • The metal channel is 21" long and 9/16" wide, though it's considered 1/2" wide in the trade.
  • Comes fully assembled with a top screw clip and bottom 15-195 T-Lock Balance Shoe with a Closed Cam. All other shoe styles are sold separately.
  • Used by International and other manufacturers.
  • All window balances are sold individually, not in pairs
  • Can work for either the left or right side of the window interchangeably.

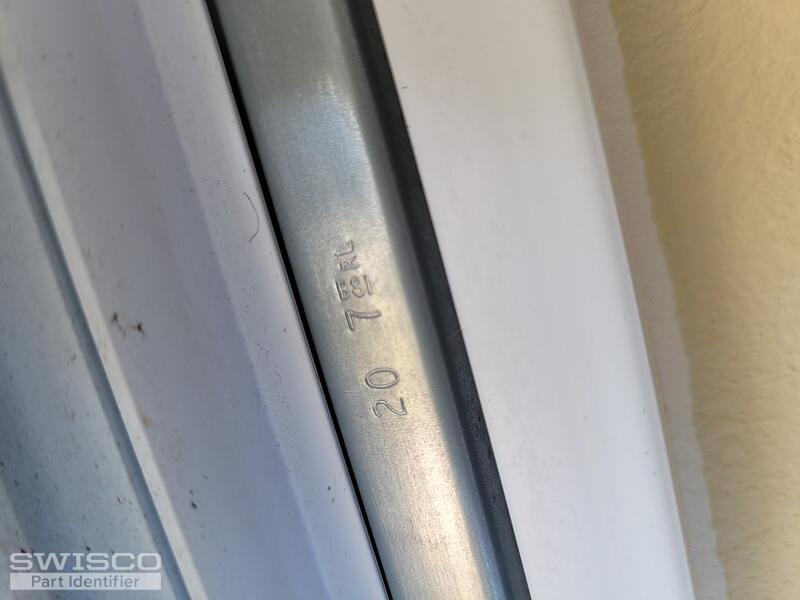

  • Spring strength is denoted by the stamp option printed on the metal channel. If you do not have a stamp option, weigh the sash on a scale and refer to the chart below.
    • Stamp Option Sash Weight Range
    21A 5 to 10 lbs
    21B 10 to 14 lbs
    21C 14 to 18 lbs
    21D 18 to 22 lbs
    21E 22 to 26 lbs
    *This information is based on 2 balances per sash. Balances are designed assuming friction in the jamb weather-strip will carry a portion of the sash weight. Suggested sash weights are approximate.
Good Idea!
Balances are sold individually, however, it is a good idea to replace both window balances at the same time. Pairing a new balance with an old one would cause the new balance to wear out faster.
Helpful Tip!
The stamp option is a code that indicates how much weight a pair of balances can support. You can use the stamp on your original channel balance as a reference in most cases, or you can weigh your sash and refer to the chart above. If your sash's weight falls outside the weight ranges listed on that chart, or you are still unsure how to proceed, ask our experts for help.
Guides
  • Modifying the Series 795 Balance
    • Related Videos
    Related Item(s)
    26-021
    $1.97
    Pivot Bar, 2-1/2"
    26-366
    $3.77
    Vinyl Window Sash Pivot Bar
    15-194
    $2.05
    1" T-Lock Balance Shoe, Closed Cam
    15-195
    $1.92
    1-1/4" T-Lock Balance Shoe, Closed Cam
    15-195B
    $1.97
    1-1/4" T-Lock Balance Shoe, Open Cam
    15-229
    $1.97
    1-1/4" T-Lock Balance Shoe, Closed Cam
    Customer Questions & Answers
    Discussion Posts Last Post Date

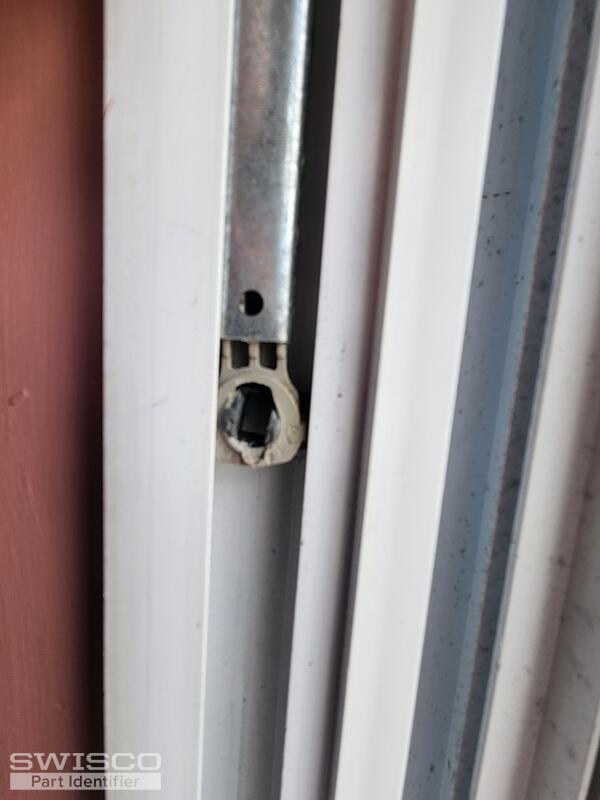

    Inverted block+ tackle balance end guide replacement for Window
         		This discussion includes video(s). This discussion includes image(s). 11 Oct 22, 2024
    Part I'd
         		This discussion includes video(s). This discussion includes image(s). 4 Aug 22, 2024
    Need to identify balance part
         		This discussion includes image(s). 2 Jun 25, 2024
    Spring not able to move
         		This discussion includes video(s). This discussion includes image(s). 7 Jun 25, 2024

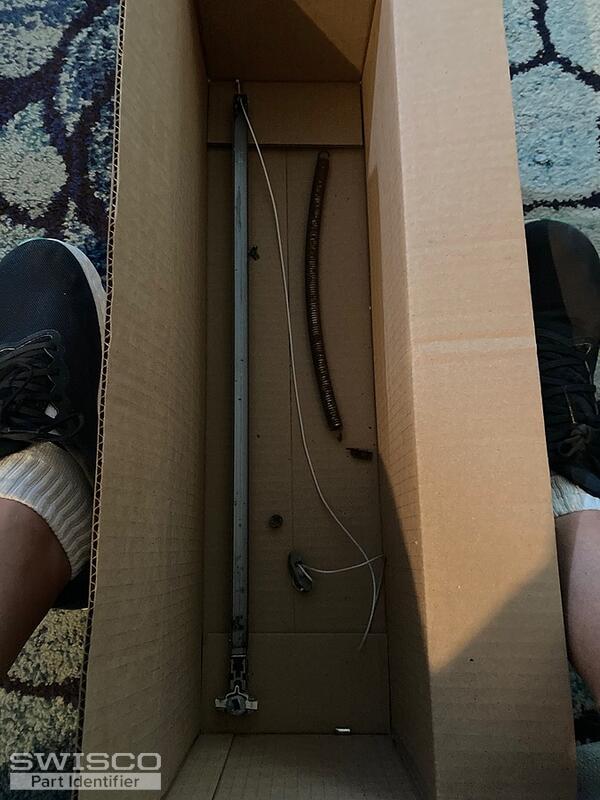

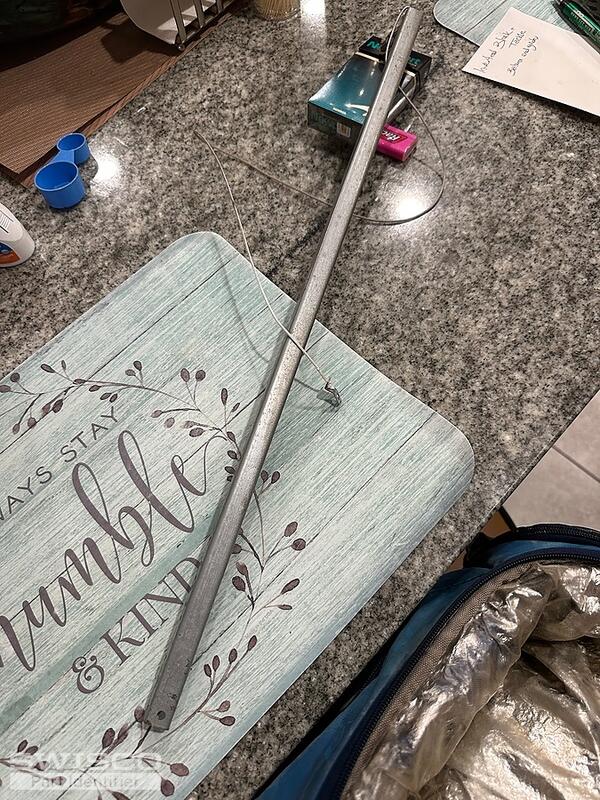

    Broken channel
