1/2" Channel Balance

Home Owner from Fort Collins, CO
Aug 5, 2024 2:16 pm
I *think* this is a Series 385. But, I need confirmation before I order. THANK YOU!

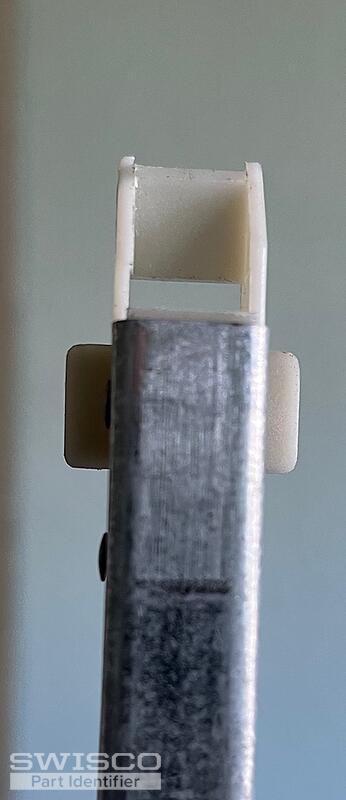

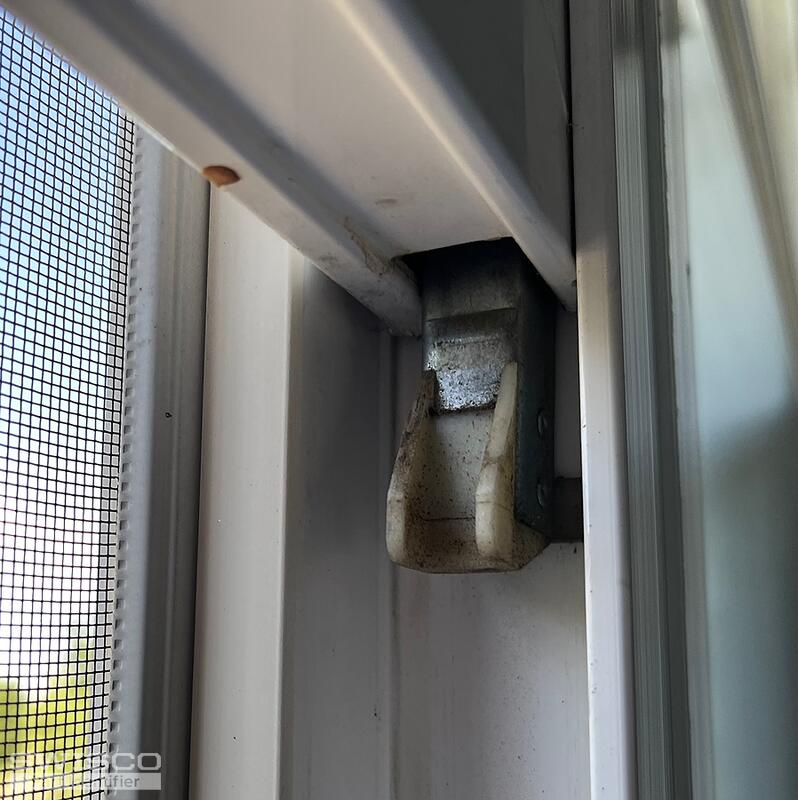

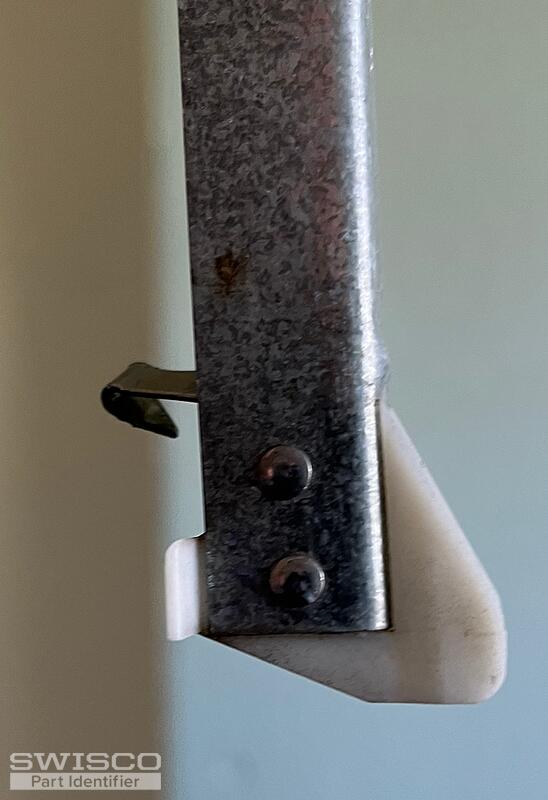

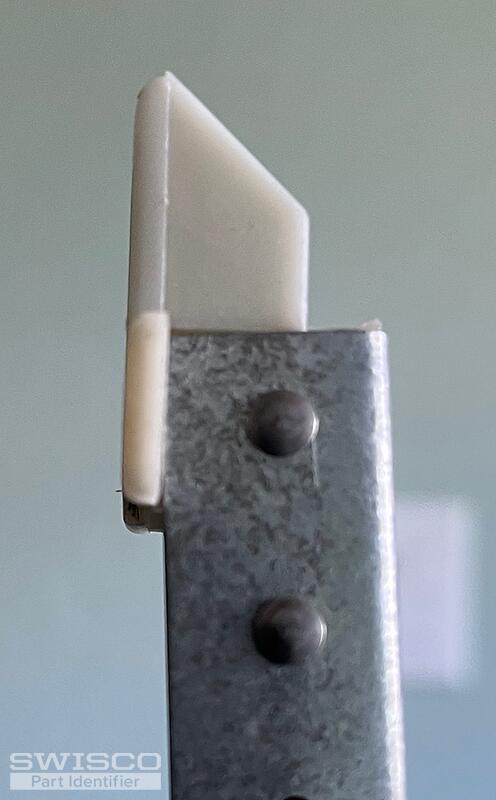

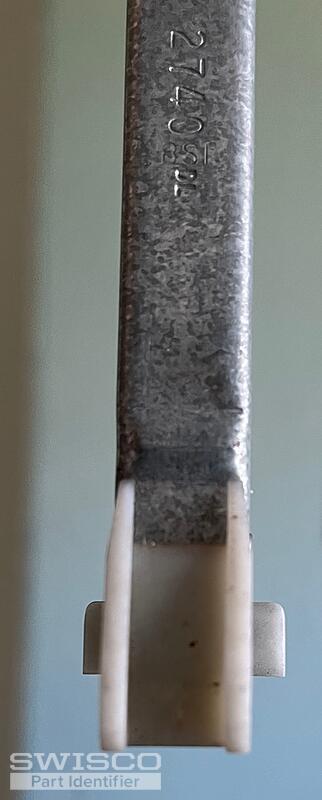

2740 Stamp Bottom Side Installed Bottom Top Front Top Side
5 user uploaded images
1 Replies
Lauren
Lauren from SWISCO
Aug 7, 2024 10:47 am
SWISCO
EXPERT

Hello, thank you for posting,

With this combination of attachments, you could have either an S380 or S385 channel balance. You’ll need to measure as shown below. The Series 380 has a 1" bottom attachment, and the Series 385 has a 1-3/32" attachment.

The length of the metal channel excluding the nylon attachments should measure 28" and you will need a 2740 stamp option. Please review and let us know if you have any additional questions!



Comparison of the S380 and S385 balance shoes.
Comparison of the S380 and S385 balance shoes.
