14630 - 30" SASH BALANCE

Contractor from Massachusetts
Jul 11, 2024 3:44 pm
Sash Balance
30"
9/16 wide
1/2 tall

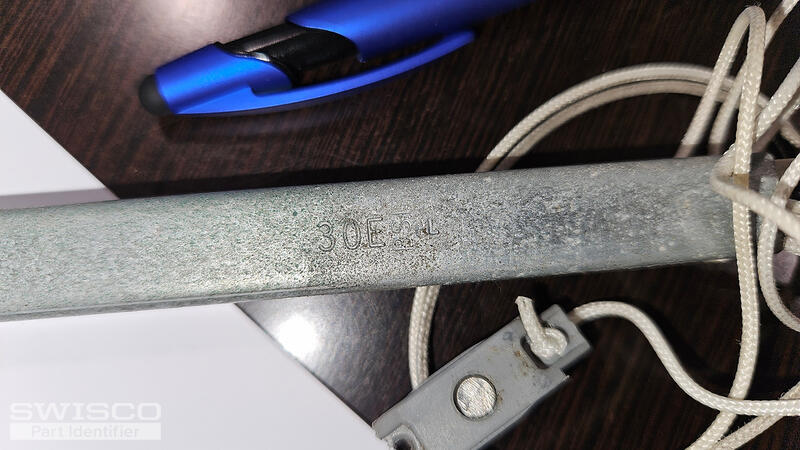

Stamped 30E BSI 2L (I'm guessing on the 2L, it's tough to see)
- No hardware on top of sash - the spring was held in with a pin

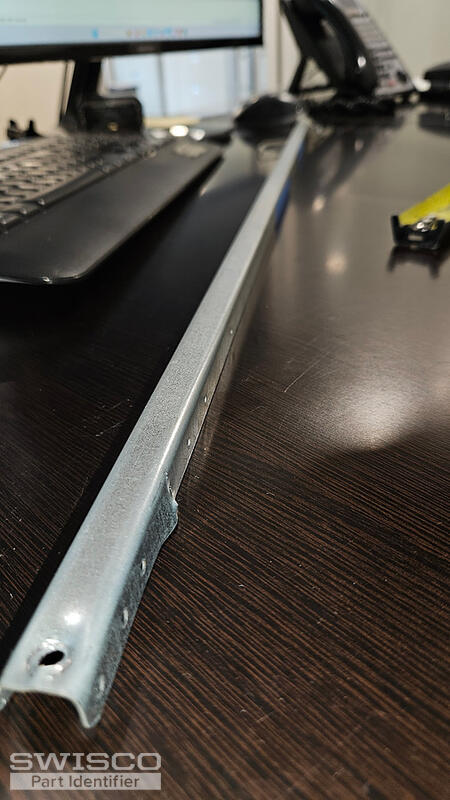

20240711_143839 20240711_143851 20240711_143855 20240711_143902 20240711_151526
5 user uploaded images
2 Replies
+ Add a Comment
Contractor from Massachusetts
Jul 11, 2024 3:46 pm
MORE PICS

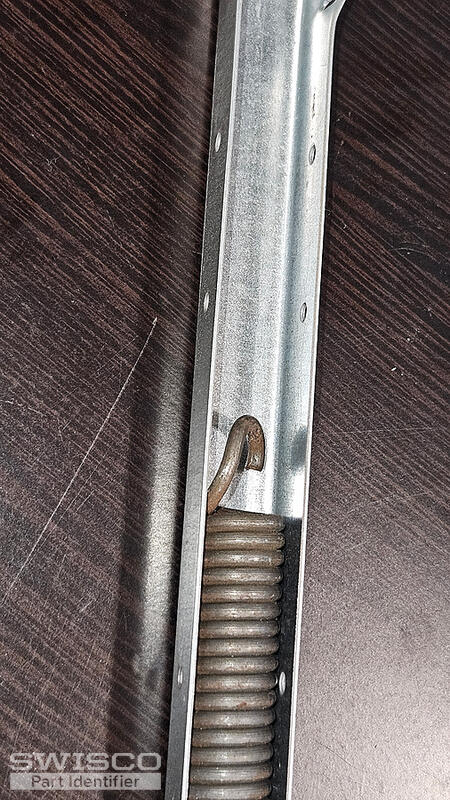

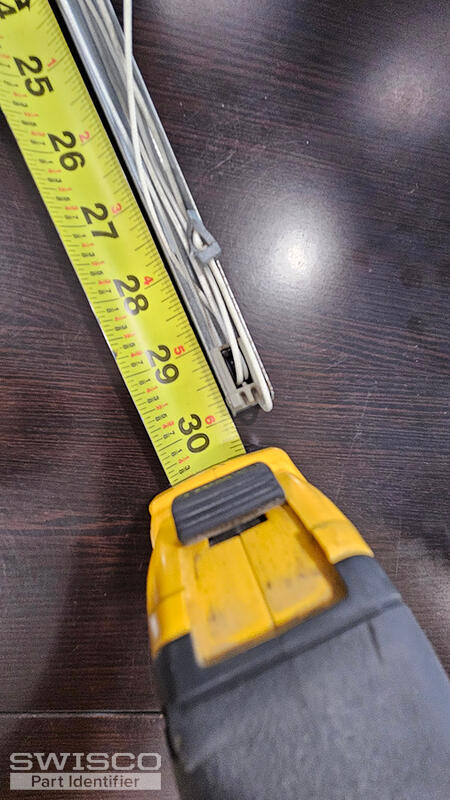

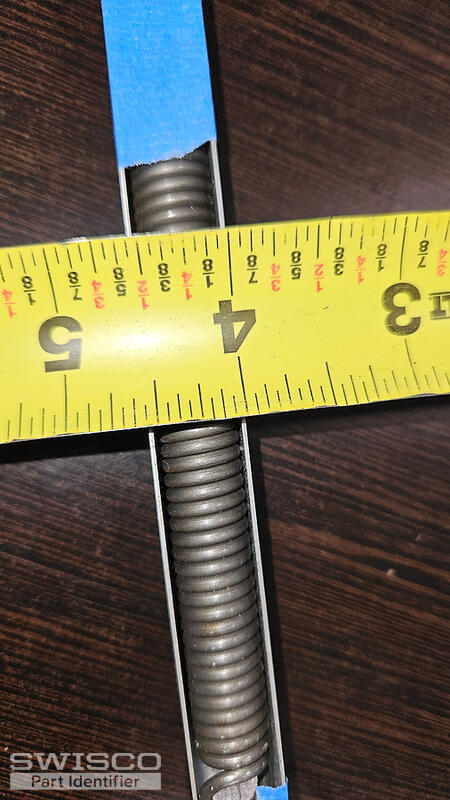

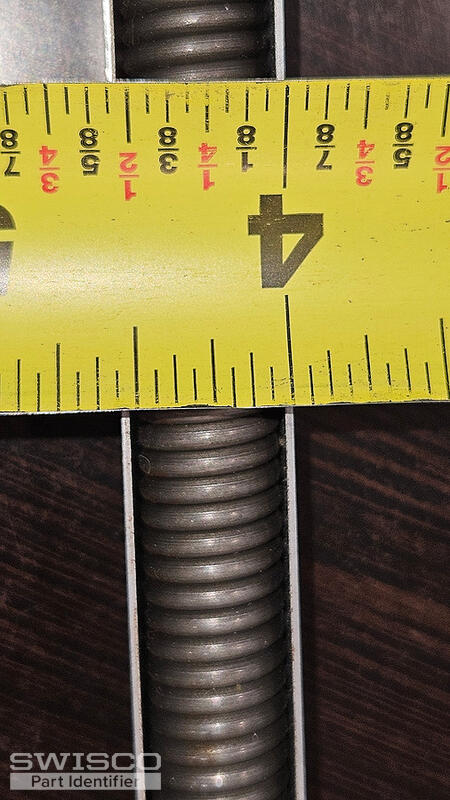

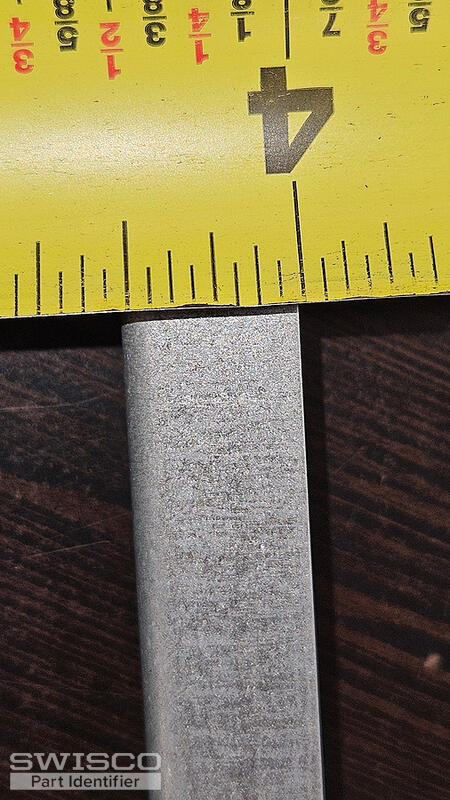

20240711_151315 20240711_151346 20240711_151421 20240711_151455 20240711_151508
5 user uploaded images
Lauren
Lauren from SWISCO
Jul 12, 2024 11:00 am
SWISCO
EXPERT

Hello, thank you for posting,

It appears that your balance uses a terminal clip at the bottom that is used on the Series 770 channel balance. Please review the overall style to see what you think! The terminal clip attaches to the pivot shoe in the window channel. This balance installs at the top with a screw through the metal. If your attaches differently, please let me know!

See the S770-30 channel balance with a 30E stamp option and let me know if you have any questions!

+ Add a Comment
Products and resources found in this discussion
30" Series 770 Balance
30" Series 770 Balance
S770-30
$12.80
How to replace a tilt-window channel balance.
How to replace a tilt-window channel balance.
