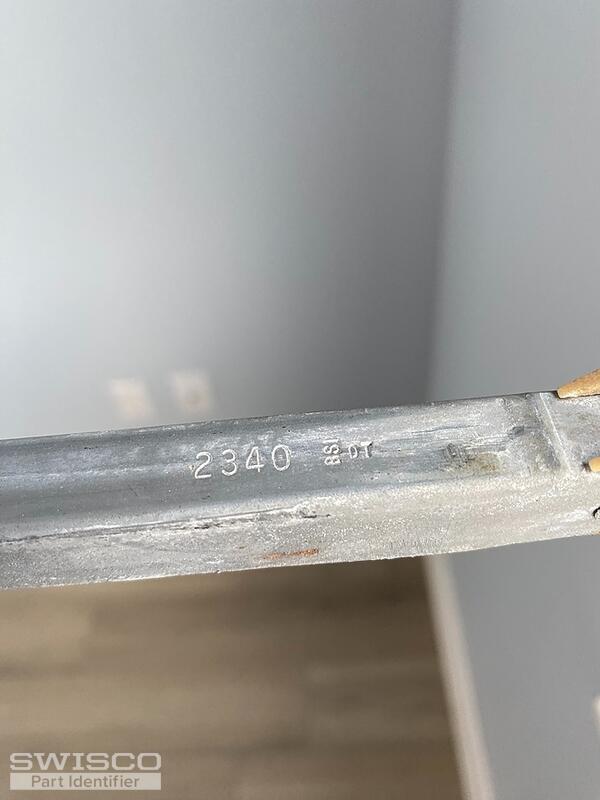

"2340" inscribed on window balance

Landlord from 29205
Jun 26, 2023 7:40 pm
Hi,
I hope you can help me with this part. I will need 2 parts, since there is only one window.
Thanks so much!
M. Lopez

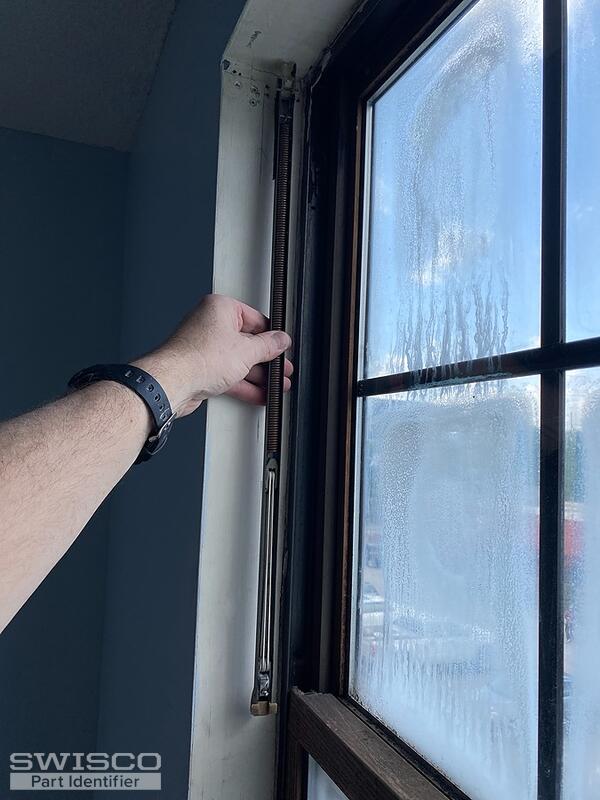

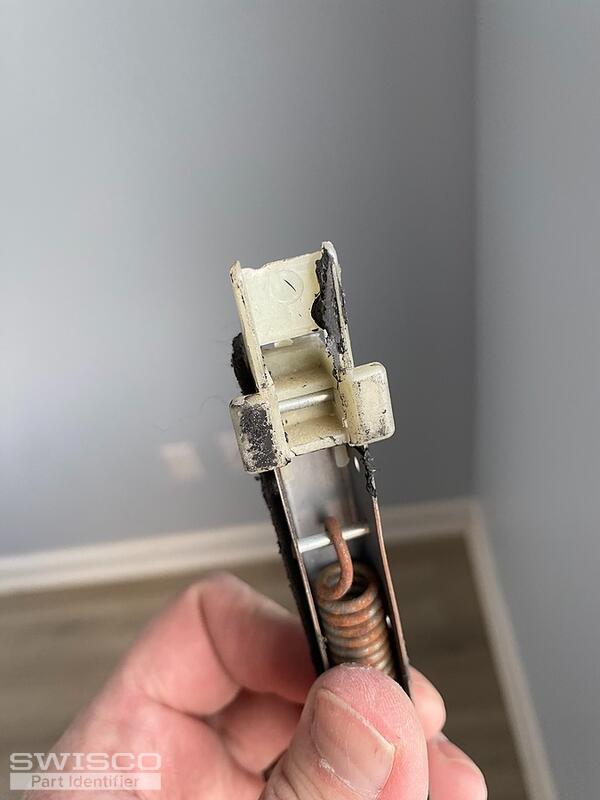

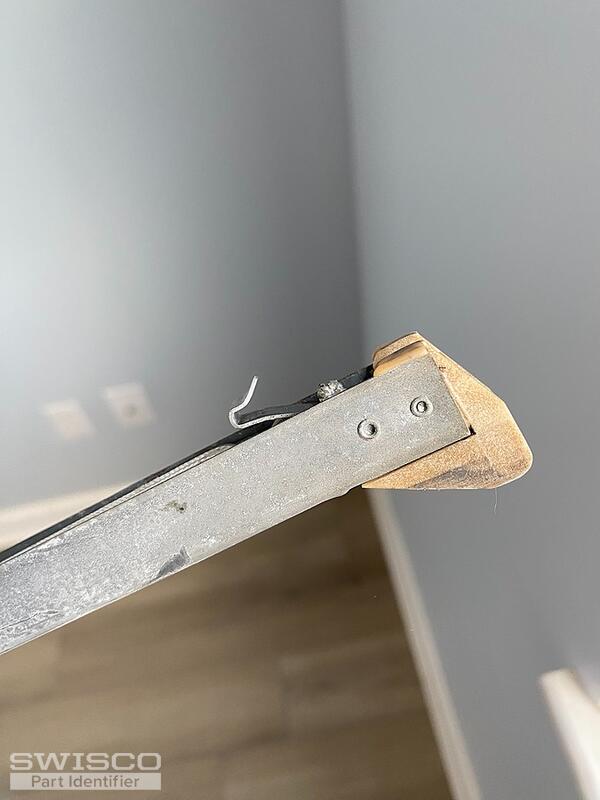

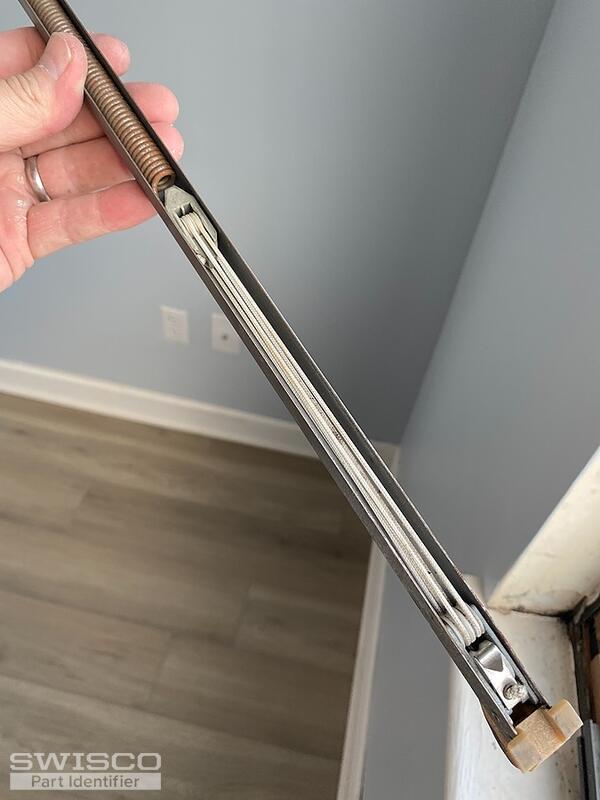

IMG_6431 IMG_6432 IMG_6435 IMG_6438 IMG_6439
5 user uploaded images
1 Replies
Jasmine
Jasmine from SWISCO
Jun 27, 2023 4:10 pm
SWISCO
EXPERT

Thanks for posting! It looks like you have either the S380-24 with a 1" shoe or the S385-24 with a 1-3/32" shoe. The metal channel of these balances are 24". To determine which series is needed for your window, look over the dimensions from the diagram below to confirm the depth of your bottom shoe. Let me know if it does not match either measurement.

You'll need to select the 2340 stamp for a sash weighing 18 to 23lbs.

Comparison of the S380 and S385 balance shoes.
Comparison of the S380 and S385 balance shoes.
