Andersen casement bow window parts

Handy Person from Rhode Island
Jul 27, 2024 10:45 am

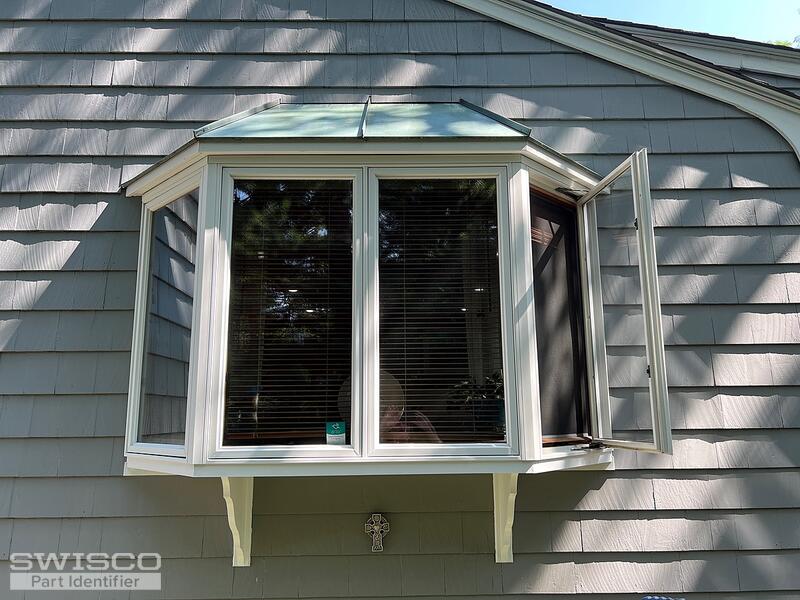

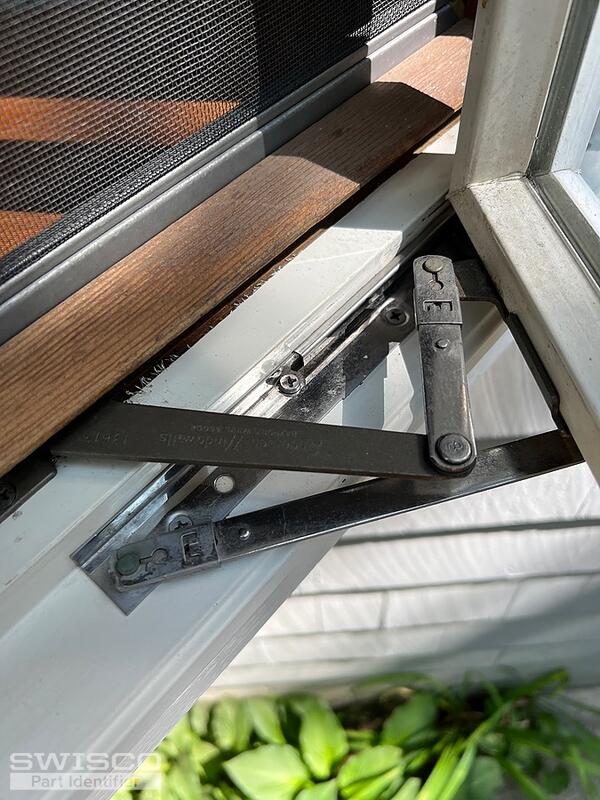

It has been difficult to crank open and close without helping the window by pushing or pulling. Attached find pictures of the crank assembly parts for your identification purposes.
IMG_5539 IMG_5543 IMG_5540 IMG_5534 IMG_5531
5 user uploaded images
1 Replies
+ Add a Comment
Casey
Casey from SWISCO
Jul 29, 2024 3:53 pm
SWISCO
EXPERT

Hello,

The operator shown in your photo resembles the Andersen 39-146 and 39-147. Take a look and compare the dimensions below to your assembly. We've also related the handle and mounting brackets on this page.

Dimensions for 39-147
Dimensions for 39-147

If you need new hinges as well, take a look at the 36-048 set depending on how the 10" long base that attaches to the window sill compares to yours. Thanks for posting and let us know if you have any other questions.

Detail of 36-048
Detail of 36-048
