Bi -fold closet door pins

Landlord from Georgia

Jul 2, 2024 12:19 pm

Hi there I'm looking for some bi-fold closet door pins like the ones in the photos, except they originally had a spring on top to hold the tension in place once on the door. I had previously ordered product 21-095, and these would have worked perfectly except they were only 4 1/2" long, and the ones I'm needing to replace are 5 1/4" long. The ones ordered were just not long enough. Do you have 21-095 except 3/4" or so longer? Could not locate on the website. Any help is greatly appreciated.

2 user uploaded images

3 Replies

+ Add a Comment

Emily from SWISCO

Jul 5, 2024 10:09 am

EXPERT

Hello!

We'd be happy to help with this but we would like more information. Can you show us photos of the other pins your door uses? We will do our best to assist from there.

Landlord from Georgia

Jul 10, 2024 11:59 am

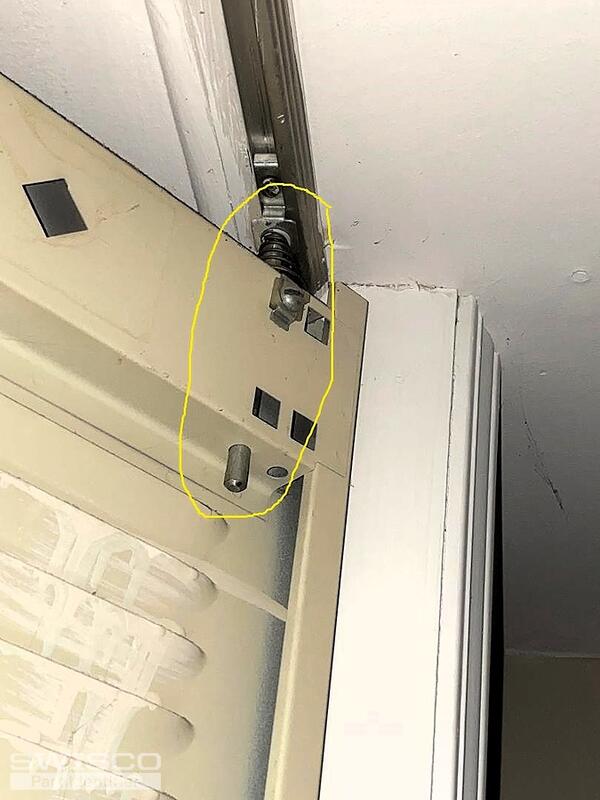

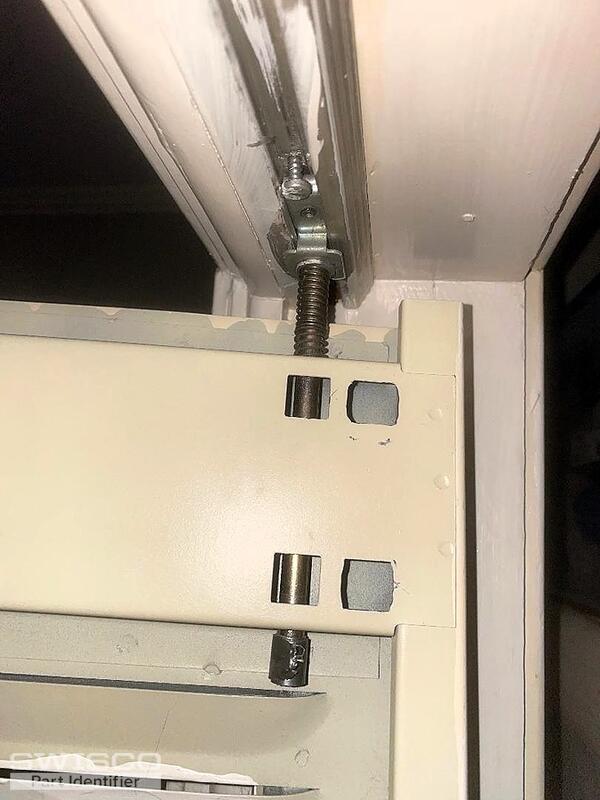

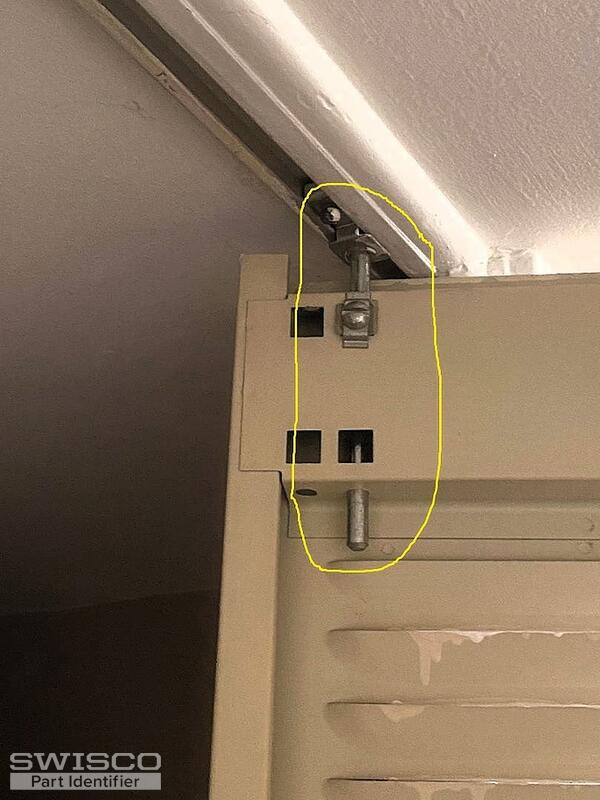

See pictures below. The pins that are circled in the pics are the ones we are trying to replace that are currently missing parts. They measure 5 1/2" long and 1/4" wide.

4 user uploaded images

Paul from SWISCO

Jul 11, 2024 8:35 am

EXPERT

Thank you for getting back to us. I recognize what brand of bi-fold door you have, it is the old-style Slimfold door. They still use the 21-001 bottom adjusting pin with the 21-154 rod clamp. They replaced the top and bottom guide pins and the top pivot pin with the 21-007 spring pin with a special nylon sleeve. They also don't require the rod clamp. Take a look at our related media guides on the installation of pins.
