Latch handle

Question

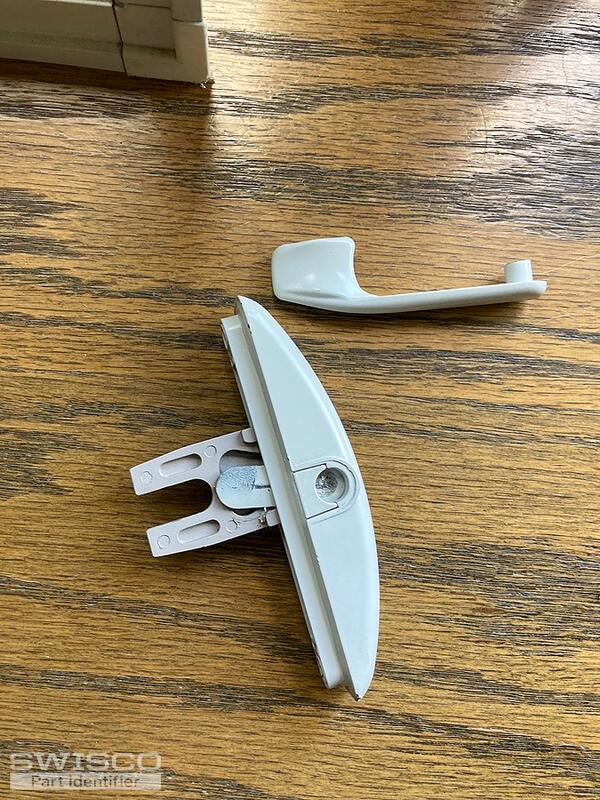

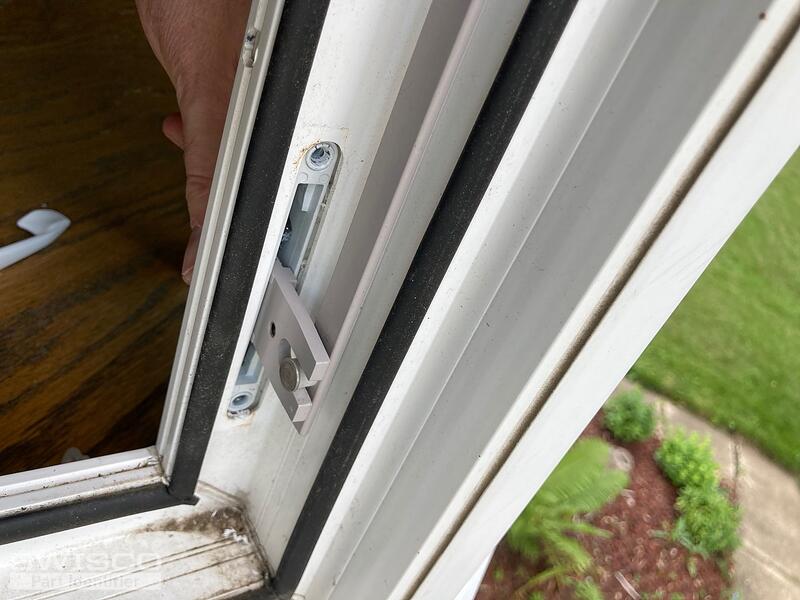

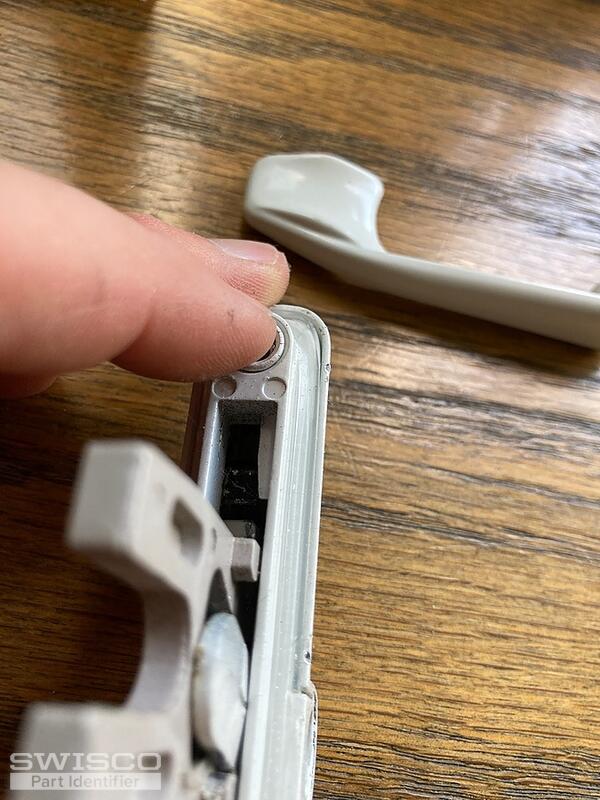

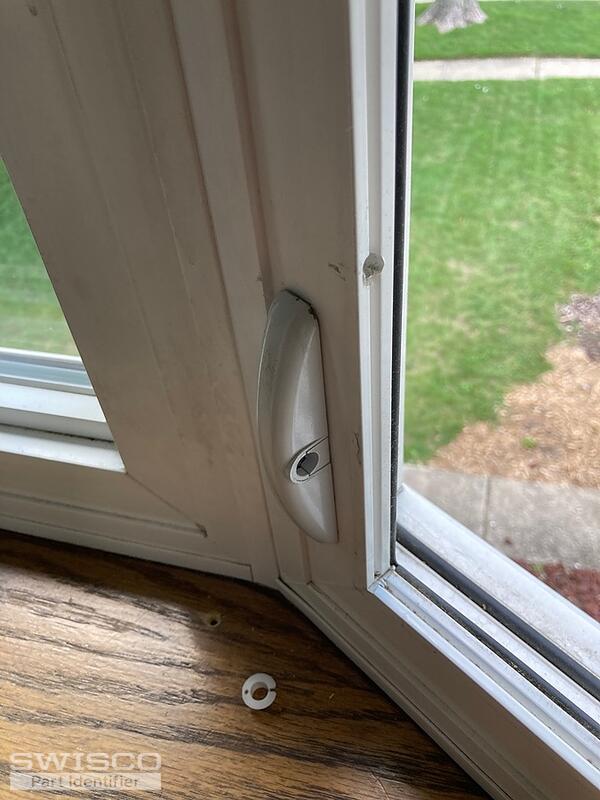

The right side window latch on this bay window broke when I was attempting to lock it. One picture is the other latch, intact. Second is the broken off handle and the interior parts. The handle is broken off at the base where it attaches to a plate. The other pictures are the outside of the latching mechanism with the window open and of the parts removed.
There is a single latch for locking each window, and the latch handle moves a bar that catches the window at three points to lock it.
Unfortunately, there are no brand markings on this window unit or screens.

Bob · Accepted Answer

Thanks for posting. See either our 38-138, 38-139, 38-095 or the 38-096. The difference between these multi-point locks is the distance between the inner edge of the rear lock surface and how far the fork projects. See the diagrams below to determine which lock matches what you have. Let me know what you find.

Alternate view of 38-095

Side view of 38-096

Alternate view of 38-138

Alternate view of 38-139

Alternate view of 38-095

Side view of 38-096

Alternate view of 38-138

Alternate view of 38-139
