Need help

Home Owner from Elizabeth NJ
Aug 25, 2024 1:11 pm
Need help identify parts
20240825_123053 20240819_104846 20240819_104757 20240825_130509 20240707_110954
5 user uploaded images
1 Replies
Jasmine
Jasmine from SWISCO
Aug 26, 2024 12:25 pm
SWISCO
EXPERT

Thanks for writing in! Your window crank reminds me of the 39-318 Truth Split Arm Operator. The link arm is being connected to the sash with, what appears to be, the 39-514 Stud Bracket. The opposite handed versions of both parts are tagged below.

To replace the crank handle you can use the 39-114L.

Alternate image for 39-318
Alternate image for 39-318

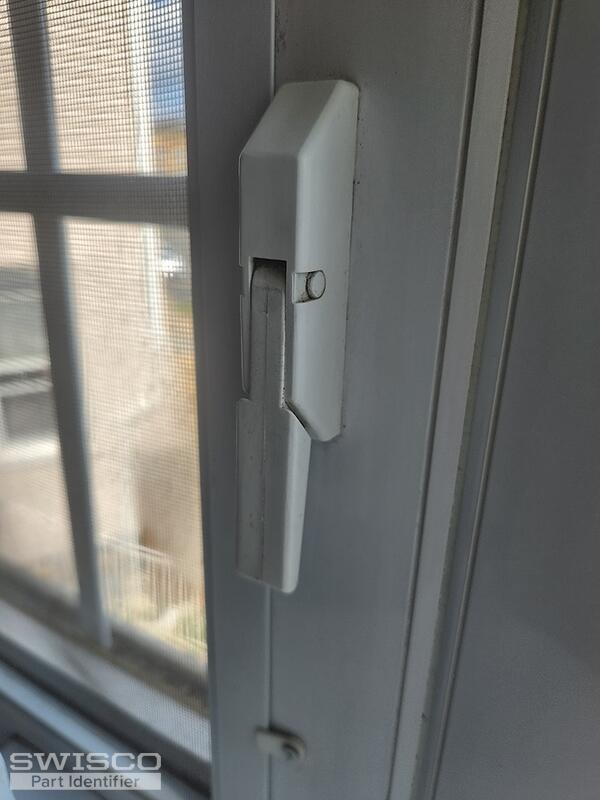

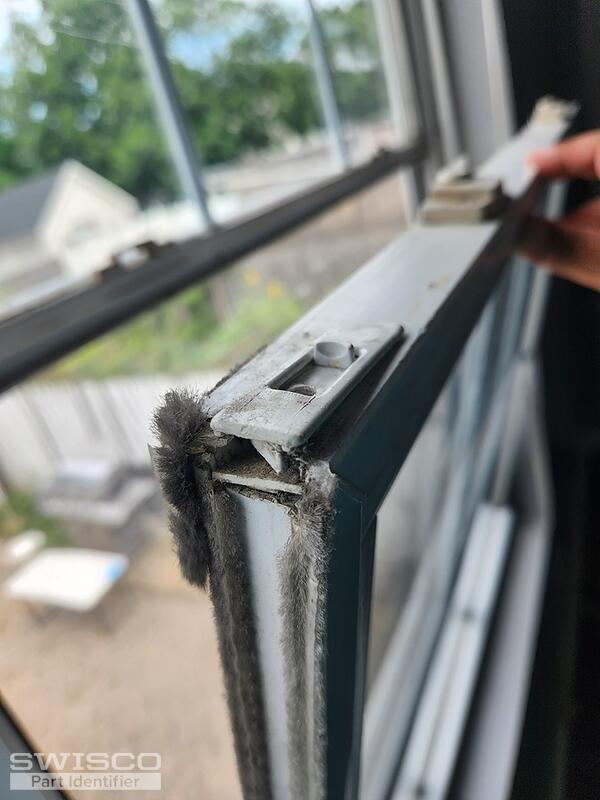

The casement lock looks like it could be the 38-090 SliverLine Casement Locking Handle. Your tilt latches have an appearance similar to the 26-393A and 26-393B tilt latch pairs; the biggest difference between them is the side of the latch. You'll need to remove the lock and the latches, so that you can compare their dimensions and their designs to your existing hardware.

Unlocked rear view of 38-090
Unlocked rear view of 38-090

Dimensions for 26-393B
Dimensions for 26-393B

Dimensions for 26-393A
Dimensions for 26-393A
