Need pivot shoe plus

Quick Learner from Fairfield, Ohio
Nov 5, 2024 3:49 pm
Need pivot shoes and piece that inserts into it plus new spring and balance charging tool. Thanks.

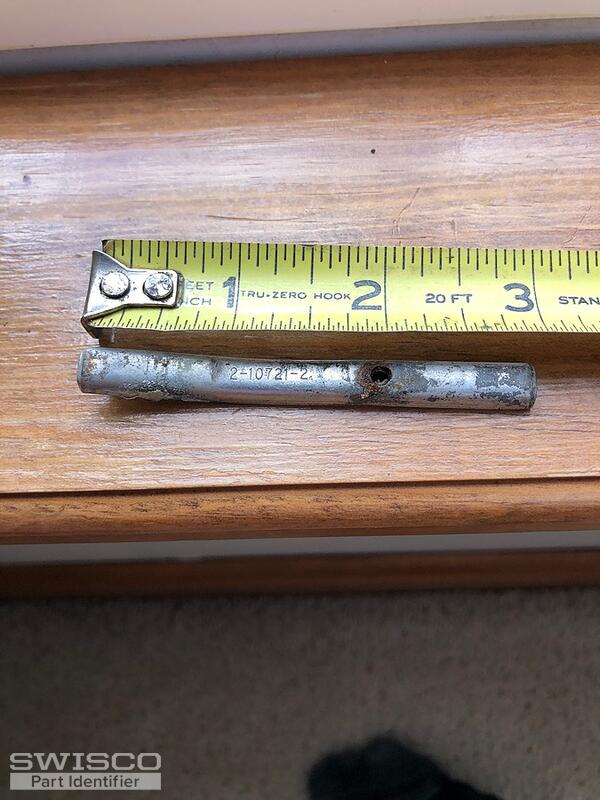

IMG_4506 IMG_4505 IMG_4504 IMG_4503
4 user uploaded images
1 Replies
+ Add a Comment
Casey
Casey from SWISCO
Nov 7, 2024 1:52 pm
SWISCO
EXPERT

Hello,

I'd recommend starting by comparing the dimensions of the 15-046 pivot shoe to your part uninstalled.

Alternate image for 15-046
Alternate image for 15-046

We also offer the 26-040 and 26-089 pivot bars that are similar to yours. Take a look and see how the dimensions below compare to yours. Thanks for posting!

Alternate image for 26-040
Alternate image for 26-040

Alternate image for 26-089
Alternate image for 26-089
