Replacement for Caldwell balance

Quick Learner from San Jose, CA

Sep 26, 2011 2:07 am

Hi,
I need to replace four Caldwell block and tackle channel balances that are about 15 years old. On the metal front there are printed numbers and letters "31 3 DQ Caldwell". Width is 1/2" and metal end-to-end length is 32". It comes with winged top and bottom pieces. I have attached 3 pictures to show the top, bottom and stamp.

Is S385-32 the right replacement part from your catalog?

Thanks.

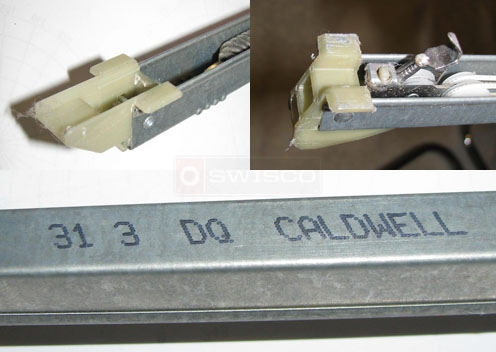

User submitted photos of their 31 3 DQ Caldwell window balance.

3 Replies

+ Add a Comment

Tom from SWISCO

Sep 26, 2011 8:24 am

EXPERT

Good Morning,

I believe you are right. The replacement you need looks to be our S385-32 with option 3130.

Before you choose that balance series, I want to you make sure you do not have the S380. The only difference between the S380 and the S385 is the balance shoe attachment. The S380 features the 15-005 shoe and the S385 features the 15-004 shoe. Take a look at each of the product pages for those two shoes and make sure you do indeed have the 15-004.

Let me know if you need any help.

Quick Learner from Seattle, WA

Feb 7, 2012 1:03 pm

At this point I'm cross-eyed:
In measuring my existing shoe my best measurement is 2/32 ie. a little over an inch marker and wee bit less than 3/32. Given this scenario, would you go for a 15-005 or 15-004. Yes the devils in the details ...

Thanks!!!!!

Tom from SWISCO

Feb 7, 2012 1:23 pm

EXPERT

Thank you for the information! With those measurements in mind, I would certainly go for the deeper 15-004, bottom balance fitting. Therefore, you should look at our S385-32 with the option 3130.
