Roco replacement parts

Home Owner from Pennsylvania
Sep 28, 2023 11:39 am
We are looking for right and left replacements for our window crank and multi lock. Do you know the parts I would need?

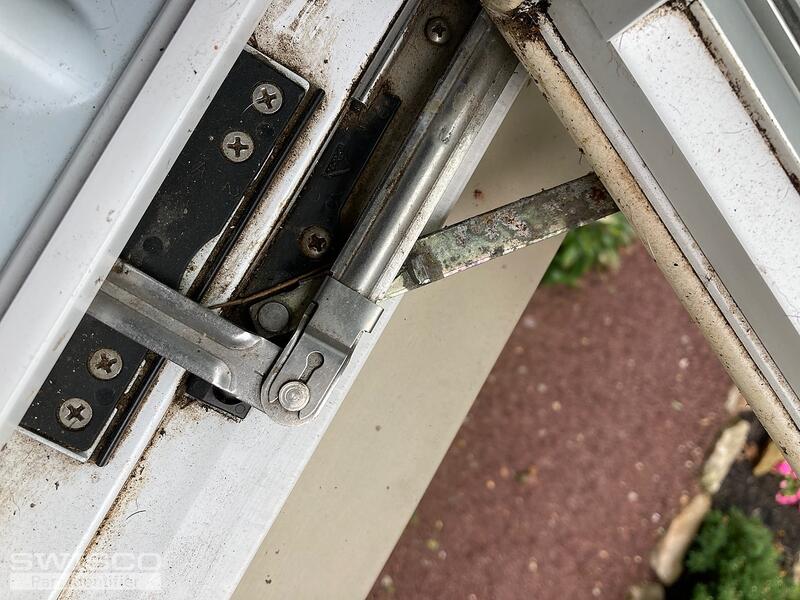

IMG_4557 IMG_4556 IMG_4554 IMG_4555
4 user uploaded images
1 Replies
Bob
Bob from SWISCO
Sep 28, 2023 3:03 pm
SWISCO
EXPERT

Thanks for posting. For the multi-point lock, see our 38-095, 38-096, 38-138 or 38-139. Compare all the dimensions below, including the projection of the fork, to see if any of these match what you need.

Alternate view of 38-095
Alternate view of 38-095
Alternate view of 38-095
Alternate view of 38-095
Side view of 38-096
Side view of 38-096
View of 38-096 Hole Centers
View of 38-096 Hole Centers
Alternate image for 38-138
Alternate image for 38-138
Alternate view of 38-138
Alternate view of 38-138
Alternate image for 38-139
Alternate image for 38-139
Alternate view of 38-139
Alternate view of 38-139

The casement operator appears to be the ROTO 39-091 (its opposite-handed version is the 39-092). ROTO discontinued the bracket arm that connects this operator's short arm to the sash, so you'll need to reuse your old one if possible. For a new handle that works with this operator, see the 39-224 sold separately. Let me know if you have further questions.
