Sash guide and channel balance

Home Owner from Oviedo Florida
Nov 15, 2020 7:20 pm
Sash guide black this is the part number I think it is please verify because mine doesn't have a number 18-161

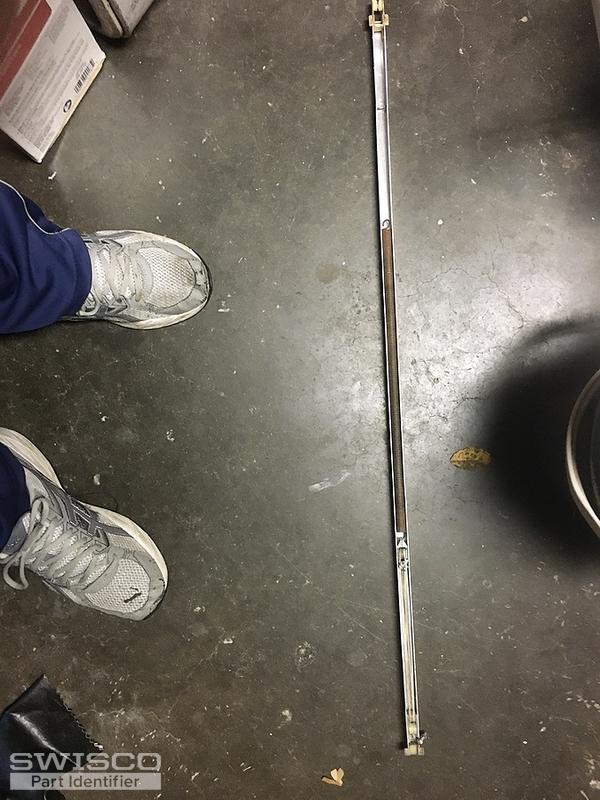

Channel balance has a part number 3420. My length is 35 inches of the metal part of it and about 1/2 inch wide.
C467B2CA-0AF1-4DA2-B33E-6D862EFD607A 6A104B01-8F1E-48AE-A57A-4947E8873888 6F71DD88-C248-4CC5-9D68-8F80B5541802 849DCF2D-34C1-4CE3-8358-EAE7E8042524
4 user uploaded images
1 Replies
Bob
Bob from SWISCO
Nov 18, 2020 11:55 am
SWISCO
EXPERT

Thanks for posting. I agree that the Top Sash Guide resembles our 18-161. For the channel balance, I believe you need either our S380-35 or S385-35. The only difference between these two balances is the depth of the bottom nylon shoe, so compare both with your old hardware to see what matches best. You'll need a stamp option of 3420.
