Spiral balancers and shoes for double hung tilting window

Quick Learner from Brighton ON Canada K0K 1H0

Oct 9, 2024 10:11 am

Please note there are 2 sizes of balancers both red tip, require 2 of each size.

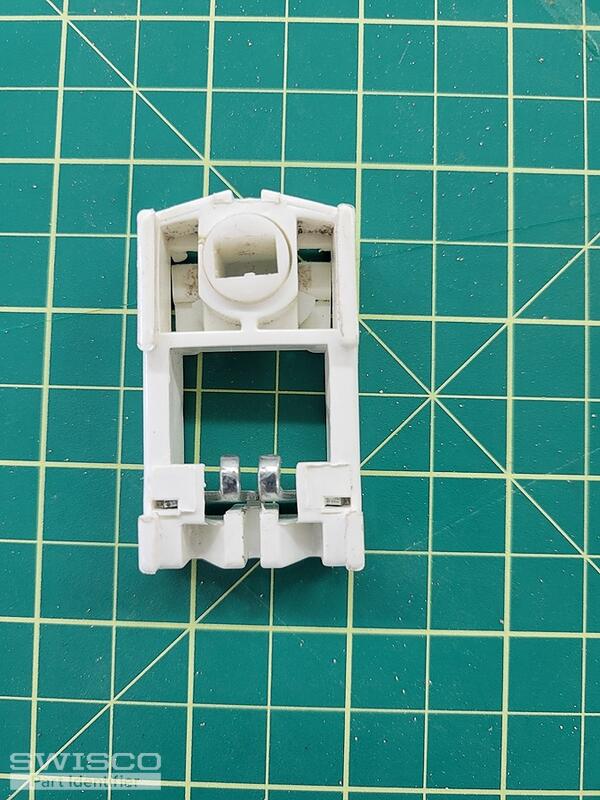

Require 4 shoes as per image.

Thanks Chris

20241009_095432

20241009_095412

20241009_093156

20241009_092847

4 user uploaded images

1 Replies

+ Add a Comment

Jasmine

Jasmine from SWISCO

Oct 14, 2024 1:13 pm

SWISCO

EXPERT

Hi Chris,

The channel balances you have can be replaced with our 5/8" diameter S600-14 and S600-16 tilt window spiral balances.

We do not have an exact replacement for your shoe, but I believe our 15-047 Pivot Shoe could work for you. The measurement you've confirmed for the shoe's thickness is 0.61" which is pretty close to 5/8". Be sure to double check your measurements.

Alternate image for 15-047

Alternate image for 15-047

Close up view of the 15-047 pivot bar insert.

Close up view of the 15-047 pivot bar insert.
