Tilt Window Replacement Parts

Quick Learner from Newnan, GA
Oct 23, 2024 11:48 am

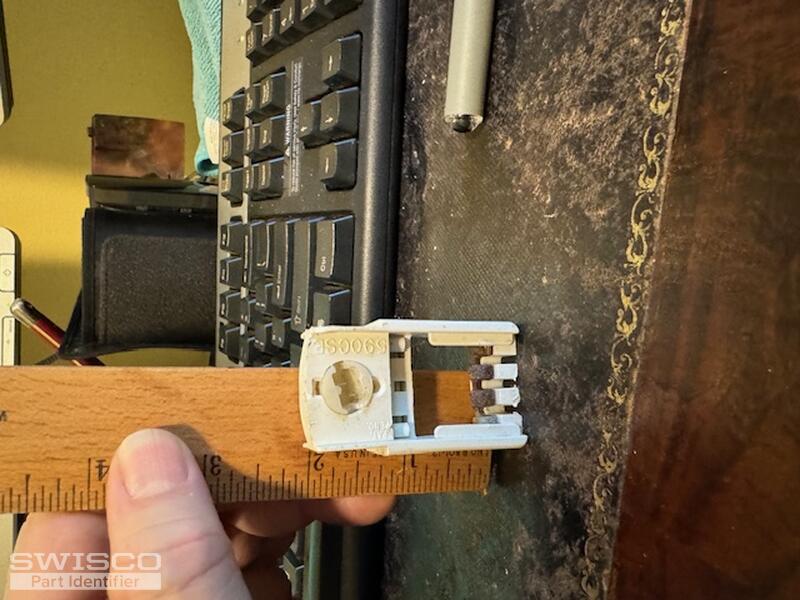

Am trying to replace various parts on my windows. House was built in 1998-9. Parts needed include several balances (measure of covers are 29" and 34"), balance shoes, one pivot bar, one balance tension tool, one window lock. Only brand I see on window is MW which is on lock. The balance shoe model no. appears to be 590CSE. See attached pictures. I can send more if needed.
tube sash lock pivot bar pivot shoe balance tip
5 user uploaded images
5 Replies
Emily
Emily from SWISCO
Oct 25, 2024 2:22 pm
SWISCO
EXPERT

Hi there!

Thanks for reaching out to us. Since you have a tilt window, I recommend the 3/8" S900 or 5/8" S600 spiral balances depending on the outer tube of the original. You can refer to the old tip to see which color option you'll need.

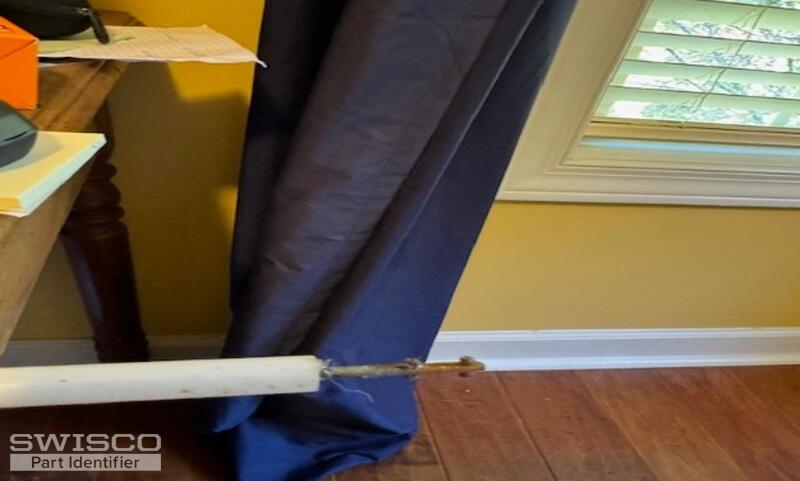

Your pivot shoe is discontinued but you might be able to use the 15-118 if the specifications match up. I can't be certain of the pivot bar since the tip is broken off but the 26-366 comes to mind. You'll want to compare the specifications with an undamaged version to confirm.

As for the lock, can you write out the distance between the two installation holes, measured from center to center?

Alternate image for 15-118
Alternate image for 15-118

Alternate image for 26-366
Alternate image for 26-366

DIMensions for 26-366
DIMensions for 26-366

Alternate view of 26-366
Alternate view of 26-366

Quick Learner from Newnan, GA
Nov 3, 2024 11:08 am

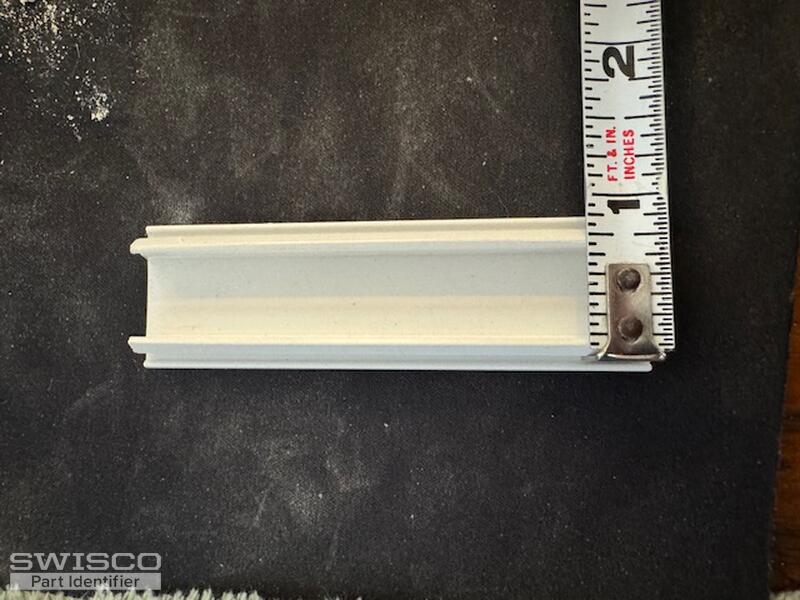

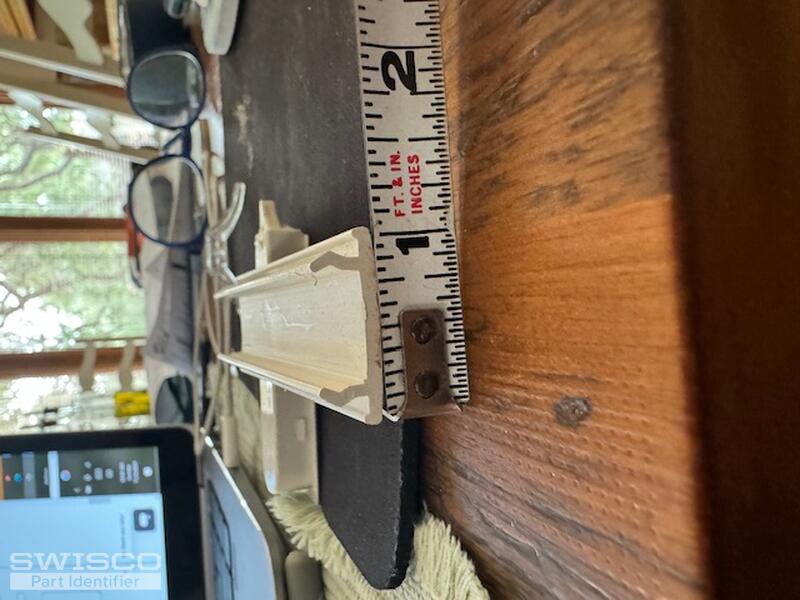

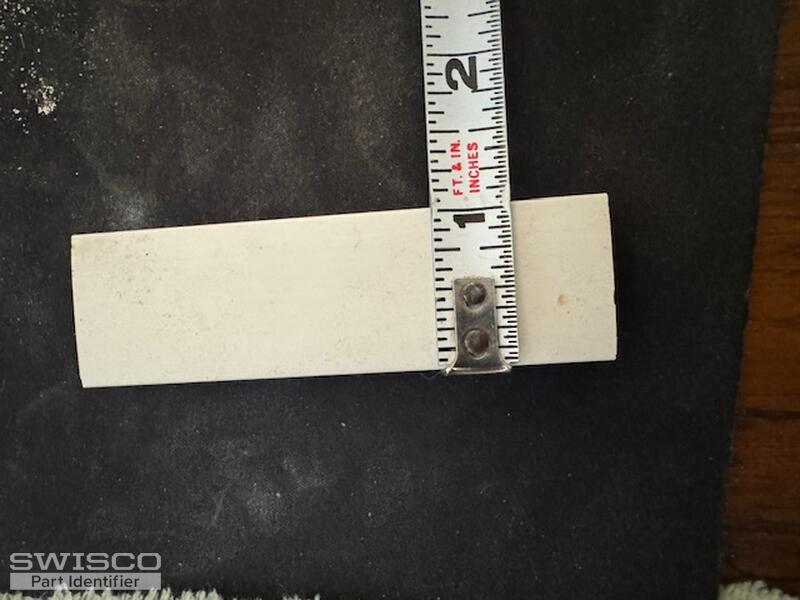

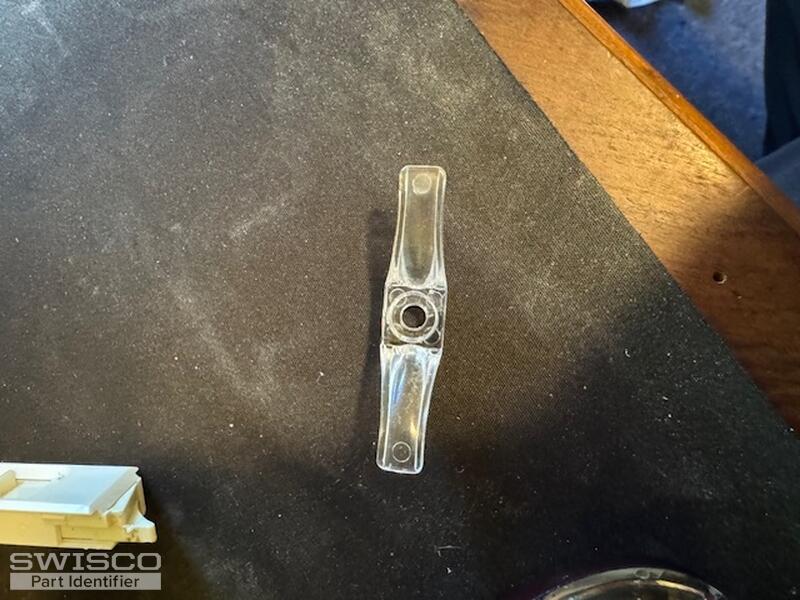

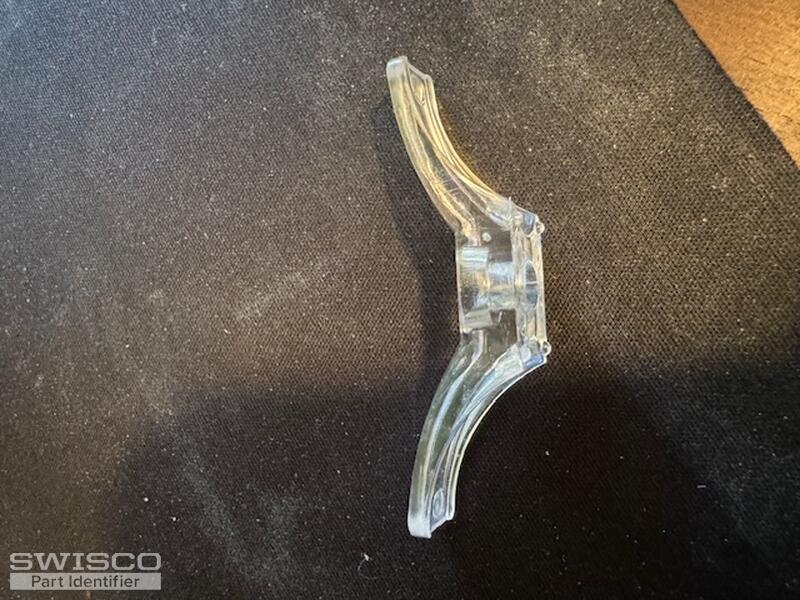

Emily, thank you for your message. On the lock, I will follow up in the next 2-3 days on the measurement as I am out of town. I am ordering the other 4 parts. Also, do you have stripping to cover the channel that holds the balances and shoes (see attached photos) and devices to hold string from a blind ( see attached). The latter is 2 inches wide. Thanks, Bernard
IMG_2187 IMG_2186 IMG_2239 IMG_2238 IMG_2237
5 user uploaded images
Emily
Emily from SWISCO
Nov 4, 2024 8:24 am
SWISCO
EXPERT

Unfortunately, we don't sell replacement balance covers or the plastic pieces shown here. I am very sorry for the inconvenience.

Quick Learner from Newnan, GA
Nov 7, 2024 4:34 pm

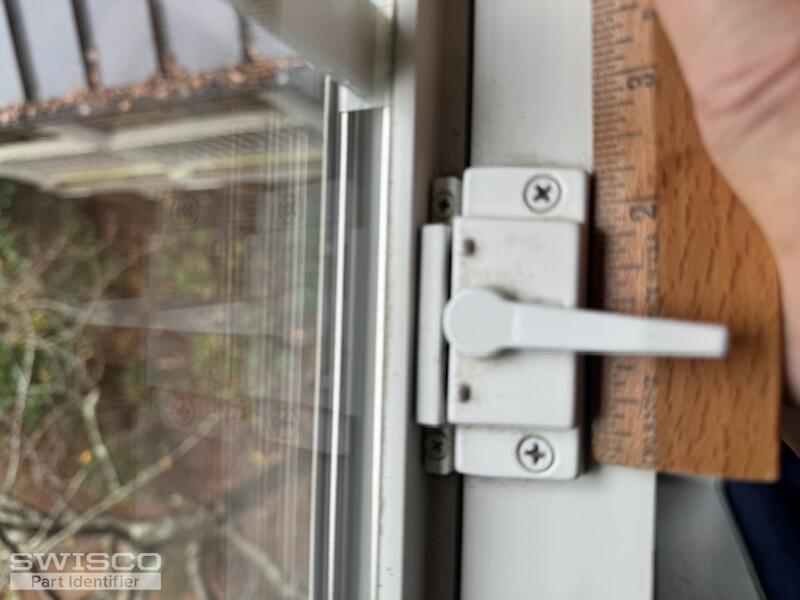

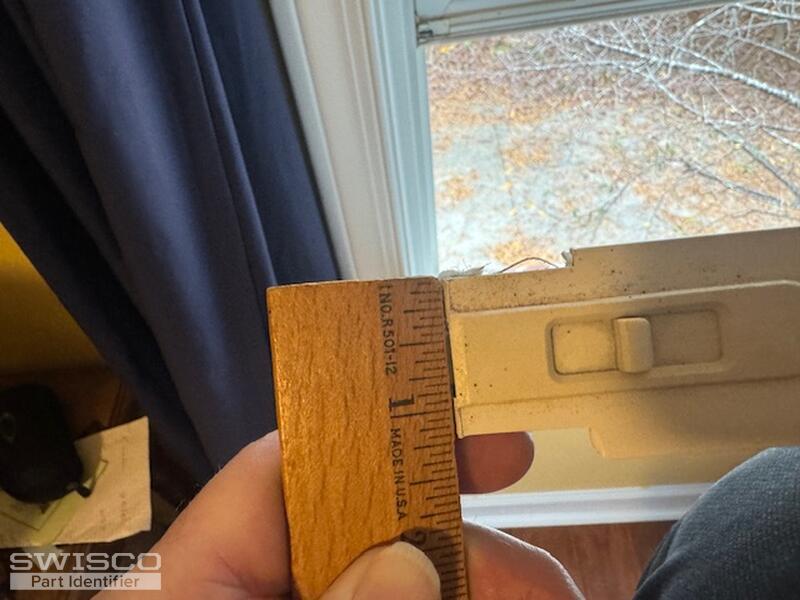

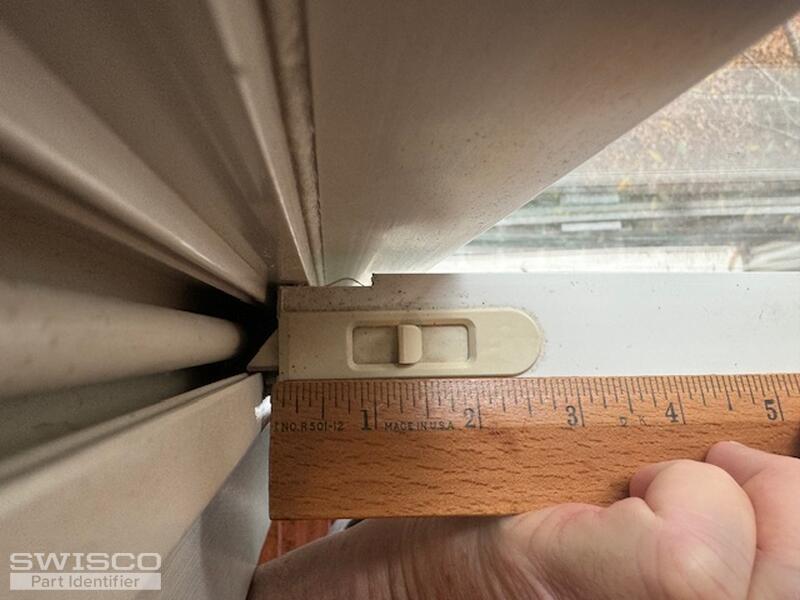

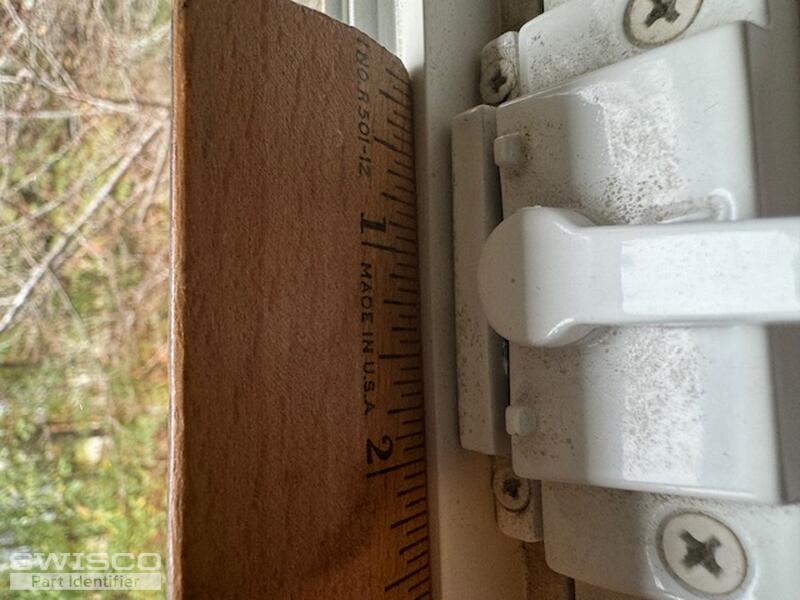

Emily, On the lock, the distance between screw holes is 2 1/8 inches, front and back (see attached). Also, do you have the tilt locks like the ones attached? Bernard
IMG_2254 IMG_2256 IMG_2259 IMG_2267 IMG_2264
5 user uploaded images
Emily
Emily from SWISCO
Nov 8, 2024 8:27 am
SWISCO
EXPERT

I'm afraid we don't have a lock with 2-1/8" installation hole center spacing. We have the 90-278 but this measures 2-1/16 on the installation hole centers with an 11/16" backset. We recommend you double-check your dimensions just to be safe!

As for the latch, take a look at the 26-243 and 26-244's specifications and see if they match up with your old one.

Dimensions for 90-278
Dimensions for 90-278

Alternate view of 26-243
Alternate view of 26-243

Profile view of 26-243
Profile view of 26-243

Alternate view of 26-244
Alternate view of 26-244

Profile view of 26-244
Profile view of 26-244
