Window Channel Balance replacement

Quick Learner from California
Nov 18, 2024 2:41 am
Hello, please see the attached photos and let me know what parts to order. Thank you for your help. PS - I think this is a cool feature that you allow to upload photos. Not other sites do this.

John

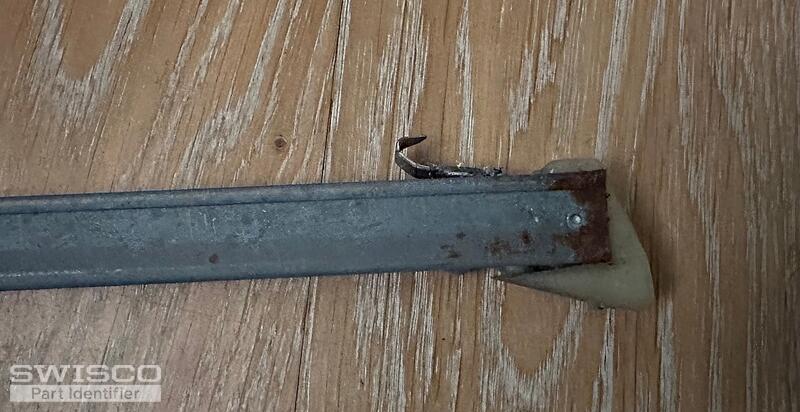

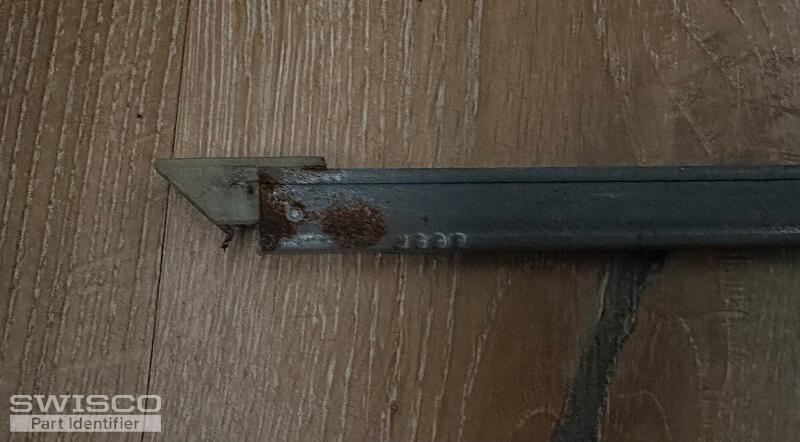

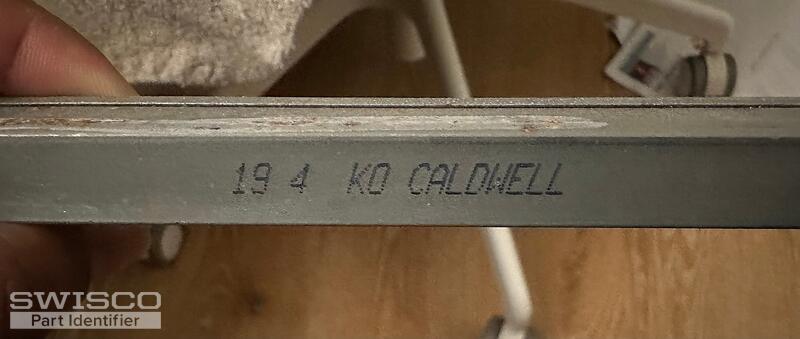

IMG_7909 IMG_7910 IMG_7911
3 user uploaded images
3 Replies
Casey
Casey from SWISCO
Nov 20, 2024 3:16 pm
SWISCO
EXPERT

Hello,

We'd be happy to look into this for you but we'll need a bit more information to narrow down your options. If you could show us the connecting point between the spring and pulley inside the metal channel, that would help us confirm if our stock balances could work for your repair or if they would need to be special ordered. Thank you!

Quick Learner from California
Nov 21, 2024 1:19 am
Hi there, thank you for your reply. Please see further attachments. Let me know if you need more photos. thanks.

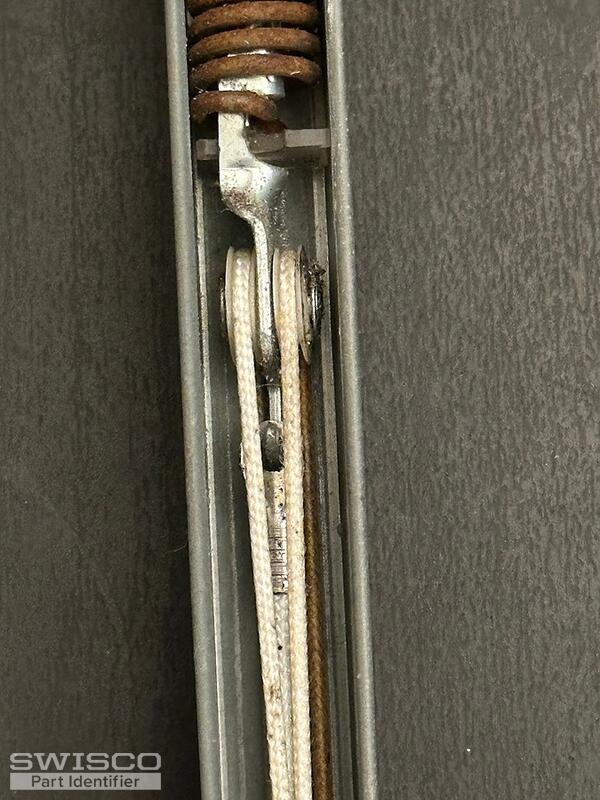

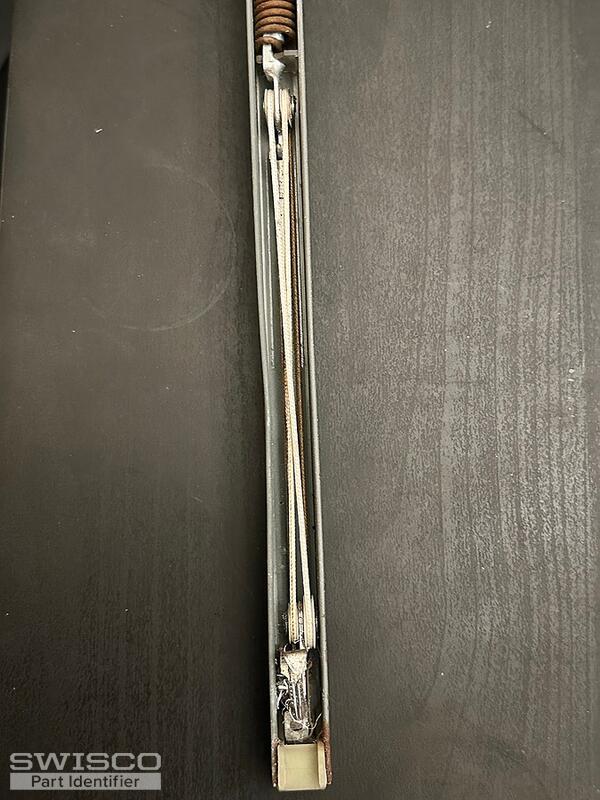

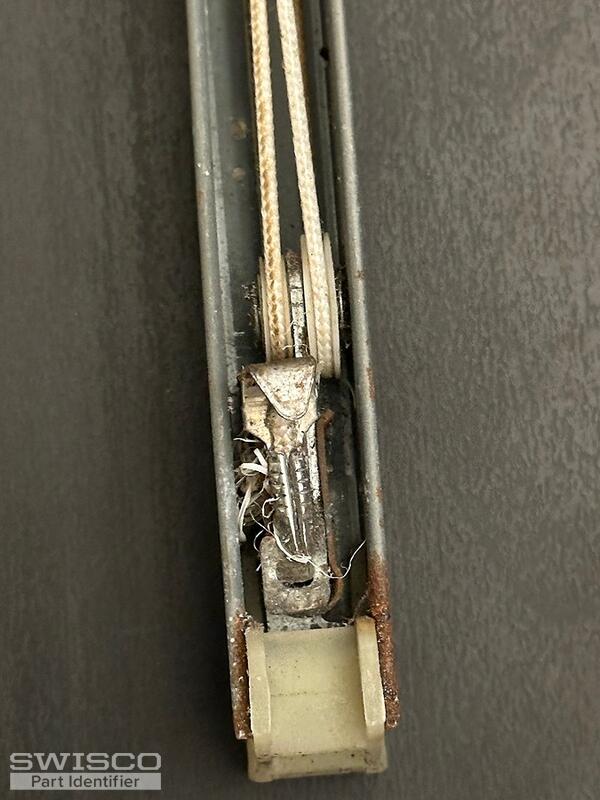

IMG_7919 IMG_7917 IMG_7918
3 user uploaded images
Casey
Casey from SWISCO
Nov 21, 2024 8:54 am
SWISCO
EXPERT

Thanks for getting back to us. It looks like you have either our S351-20, with a 15-002 bottom attachment, or S390-20, with a 15-001 bottom attachment. Take a look at the image below to determine which balance you'll need. You'll also need a 1940 spring strength option for your replacement balances. Thank you!

Comparison of the S351 and S390 balance shoes.
Comparison of the S351 and S390 balance shoes.
