Window balances 2 Sizes

Home Owner from Terra Bella CA 93270

Oct 13, 2020 10:24 pm

I need to find correct part# for 2 Sizes of window balances both 1/2" width but one is 27" long and the other is 15" long. Measured just the metal piece not the two plastic fittings on the ends.

IMG_20201011_122350314

IMG_20201011_122404302

IMG_20201011_131023653

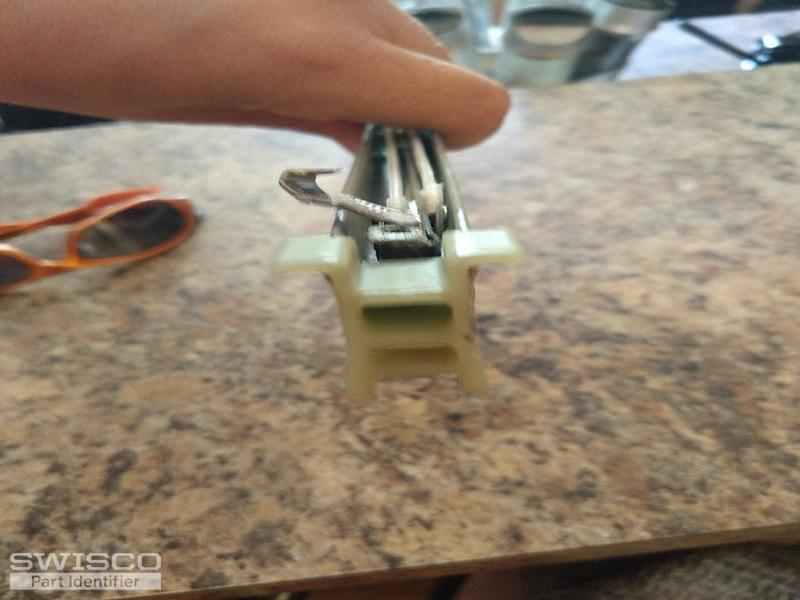

IMG_20201011_131044450

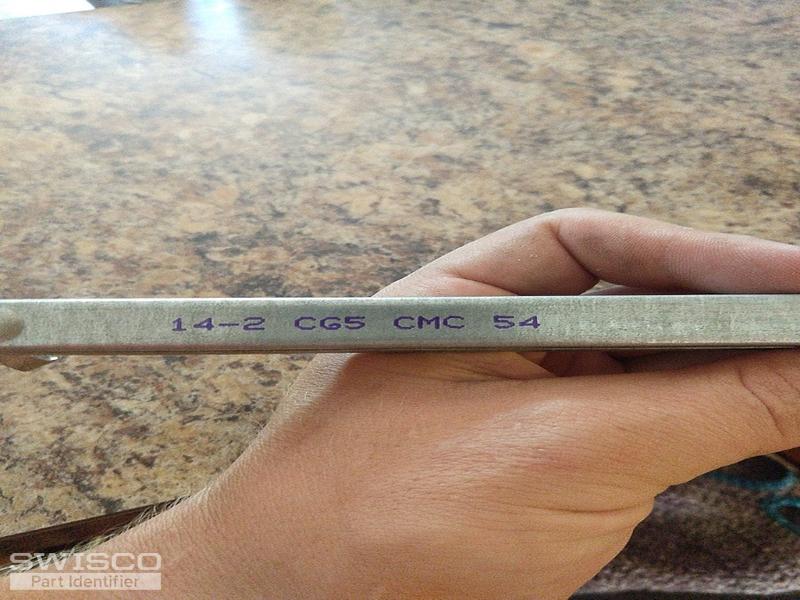

IMG_20201011_131051493

5 user uploaded images

1 Replies

+ Add a Comment

Casey

Casey from SWISCO

Oct 16, 2020 12:53 pm

SWISCO

EXPERT

Hello,

With this combination of attachments, you could have either an S380 or S385 channel balance. You’ll need to measure as shown below. The Series 380 has a 1" bottom attachment, and the Series 385 has a 1-3/32" attachment. You'll also need to choose your spring strength options based on the stamp numbers you've provided, (2630) and (1420).

Thank you and let us know if you have any other questions or concerns.

Comparison of the S380 and S385 balance shoes.

Comparison of the S380 and S385 balance shoes.
