Window channel balance part 16 3 IR Caldwell

Handy Person from Portland
Aug 5, 2019 2:03 pm
Hi ?

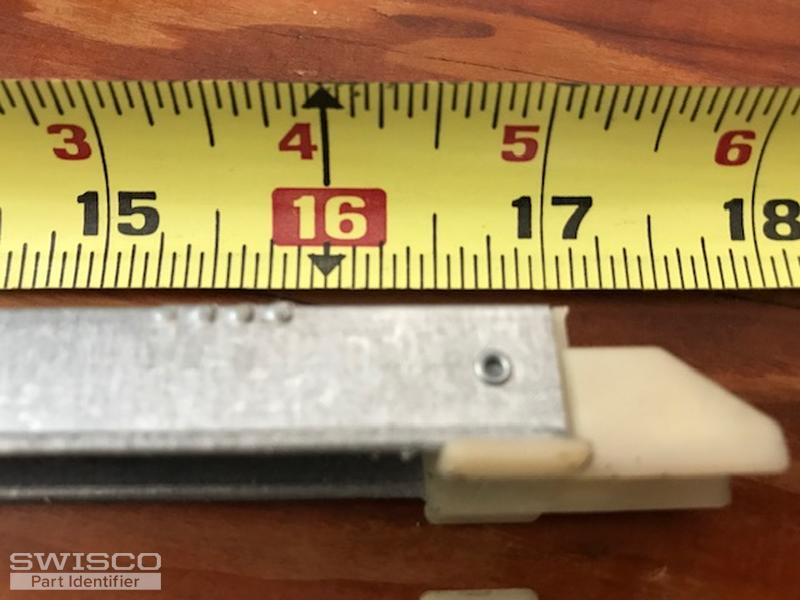

I need to order a couple replacement window balance channels from you but am unsure of the proper part number. They are 17" long (measurement of metal only) and are stamped "16 3 IR Caldwell"

Thanks for your help,

~ Grant
IMG_6530 IMG_6531 IMG_6533 IMG_6534
4 user uploaded images
1 Replies
Tom
Tom from SWISCO
Aug 9, 2019 11:05 am
SWISCO
EXPERT

Thank you for submitting your inquiry to our discussion board.

It looks like you have either our series 380 or series 385 channel balance.

The difference between the two balances lies in the bottom shoe.

Comparison of the S380 and S385 balance shoes.
Comparison of the S380 and S385 balance shoes.

The series 385 balance has the 15-004 shoe which is slightly larger from front to back, as illustrated.

If you measure your shoe as it is pictured here, you should be able to determine which one you need.

Please let me know if you have other questions.
