Window channel spring

Handy Person from San Antonio, TX
Sep 7, 2024 12:31 am
The metal part measures 28"
Which item number do I need to order?

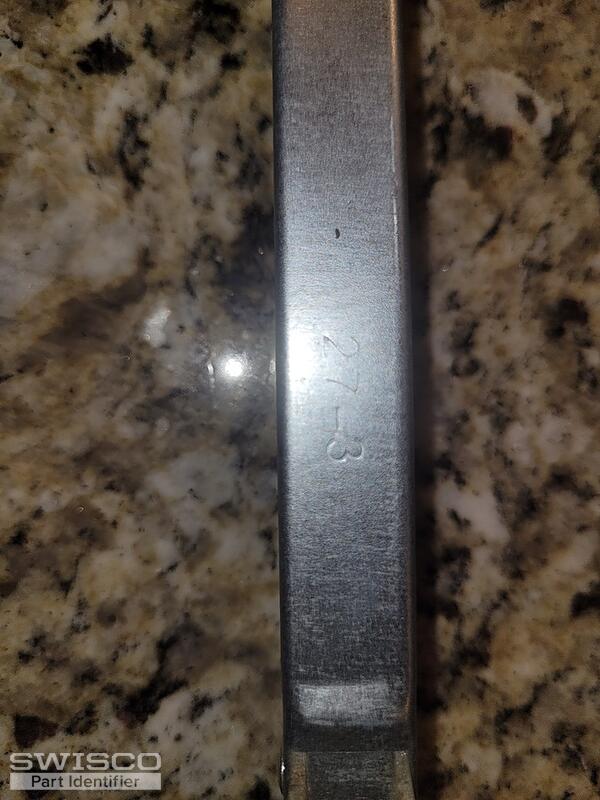

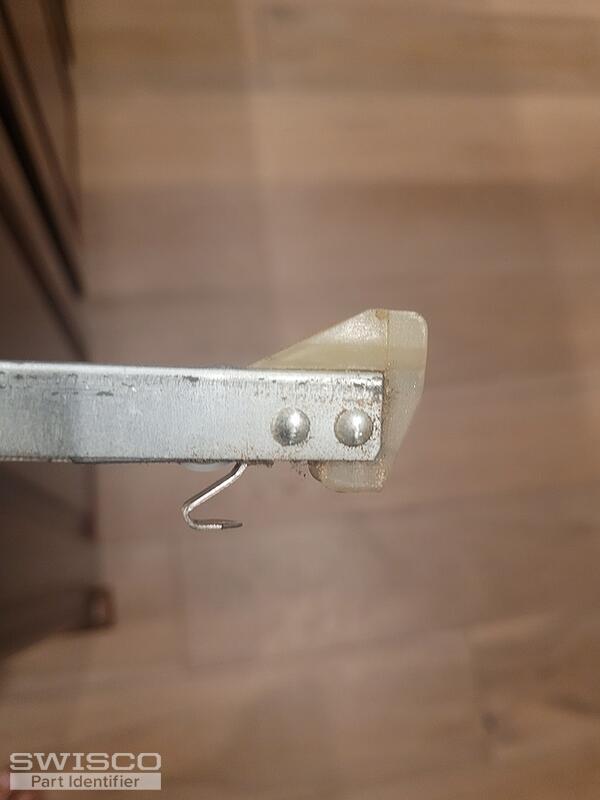

20240906_221340 20240906_221343 20240906_221335 20240906_221329 20240906_220736
5 user uploaded images
1 Replies
+ Add a Comment
Jasmine
Jasmine from SWISCO
Sep 10, 2024 1:01 pm
SWISCO
EXPERT

Your channel balance can be replaced with the S395-28 Channel Balance. Like your, it is assembled with a winged top and a wingless bottom shoe.

You can select the 2730 stamp option, which will support a sash weighing 13 to 19lbs.
