Window lock

Contractor from Macomb county
Jul 30, 2024 8:14 pm

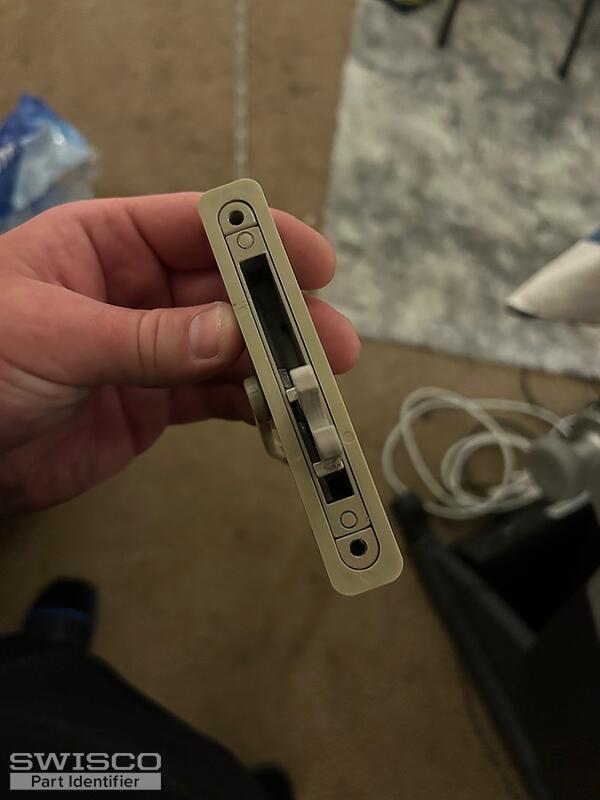

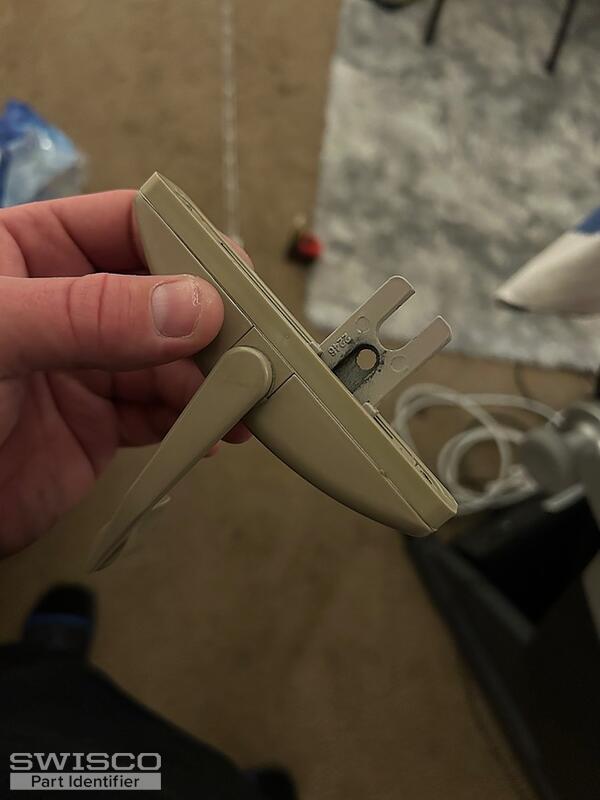

One of our customers had this lock, it's pretty rare and was hoping you guys have it. The handle does have the part number 2246 on it.
IMG_3730 IMG_3731 IMG_3733 IMG_3736 IMG_3737
5 user uploaded images
1 Replies
+ Add a Comment
Jasmine
Jasmine from SWISCO
Aug 1, 2024 1:12 pm
SWISCO
EXPERT

Thanks for reaching out! The casement window lock pictured here reminds me of the 38-138 with a 29MM fork or the 38-139 with a 37MM fork. To determine which of these is the right replacement, carefully look over each of their dimensions.

The plastic rectangular piece is the 39-265 Lock Bar Guide. I'm sorry to say we would not be able to recommend a replacement for the compatible tie bar.

Alternate image for 38-138
Alternate image for 38-138

Alternate view of 38-138
Alternate view of 38-138

Alternate image for 38-139
Alternate image for 38-139

Alternate view of 38-139
Alternate view of 38-139


+ Add a Comment
