Window lock

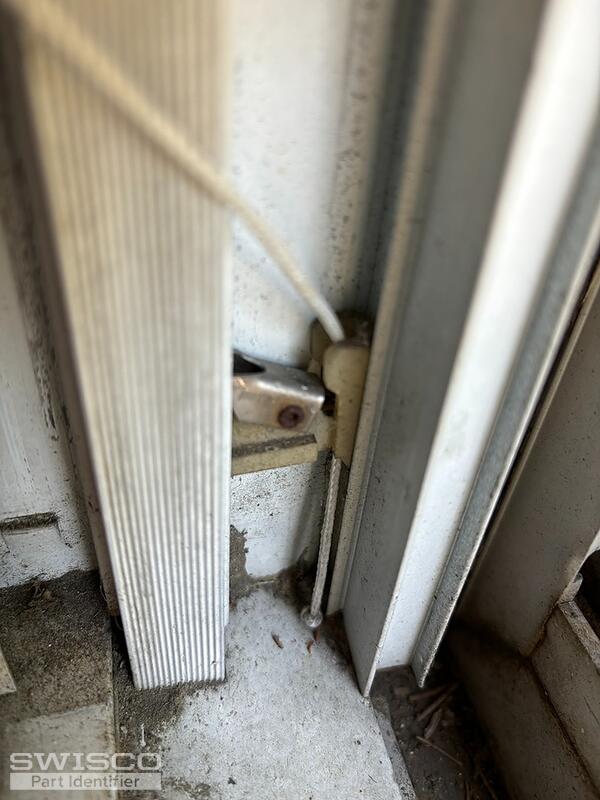

Thanks for reaching out to us! I'm afraid your photos didn't come through. Can you try re-uploading them for us? If they're still not uploading, you can email your photos to help@swisco.com with reference number D328463.

Thanks for getting back to us. We do not carry an exact match for your old-style casement lock but we have recommended the 38-097 and 38-098 in the past. You would also need new 38079 keepers.

Alternate image for 38-098

Side view of 38-098

Alternate image for 38-079

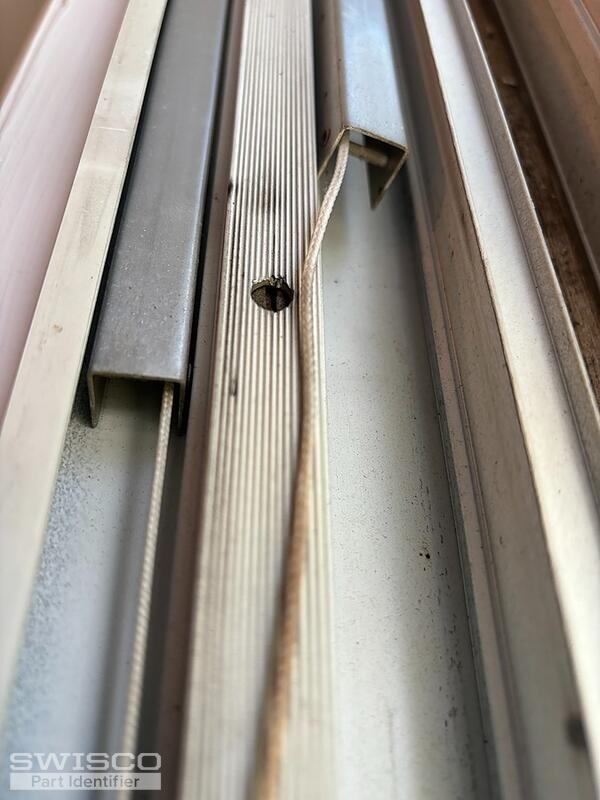

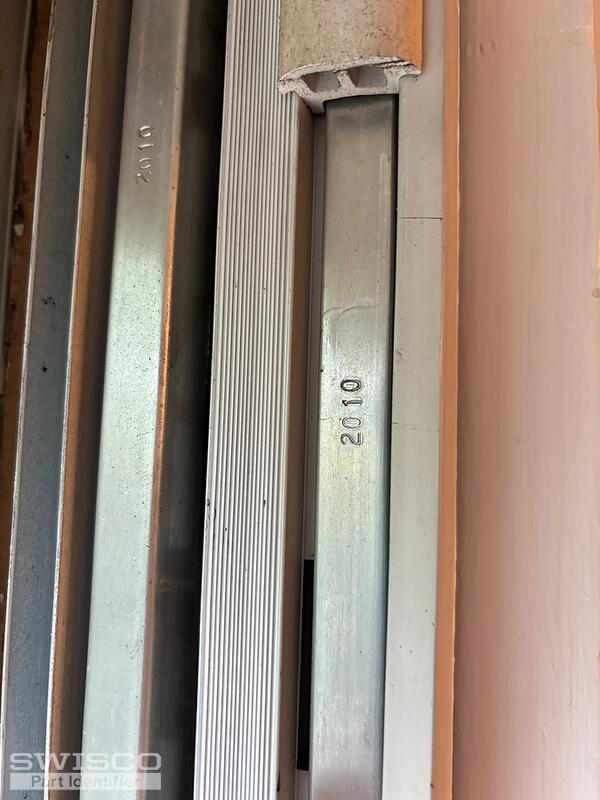

As for the channel balances, it looks like you would need the S770 plain channel balances with a knife lock shoe similar to the 15-014 attached to the pulley, which we can supply through a custom order. I'd recommend removing your knife lock shoe from the window entirely to confirm that it matches the specifications below.

Dimensions for 15-014

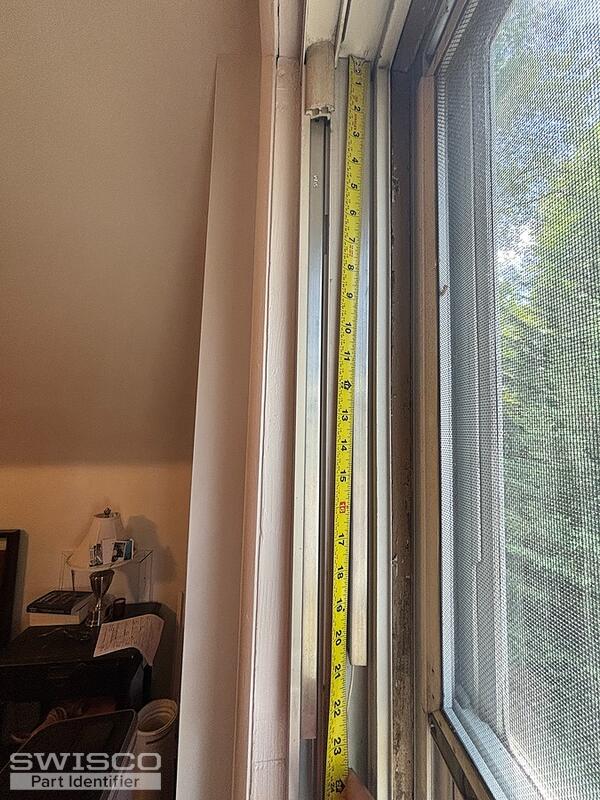

We'll also need to confirm how the top of the balance channel attaches to the window jamb. We'll also need to know the exact weight of your window sash to determine the strength option for your replacement balances. Lastly, please write out the exact length of the metal channel.
