window balance. only markings is 32 5 BR Caldwell

Quick Learner from Fountain Valley CA
Jun 30, 2024 11:13 pm
its 33 inches, sash about 30 pounds

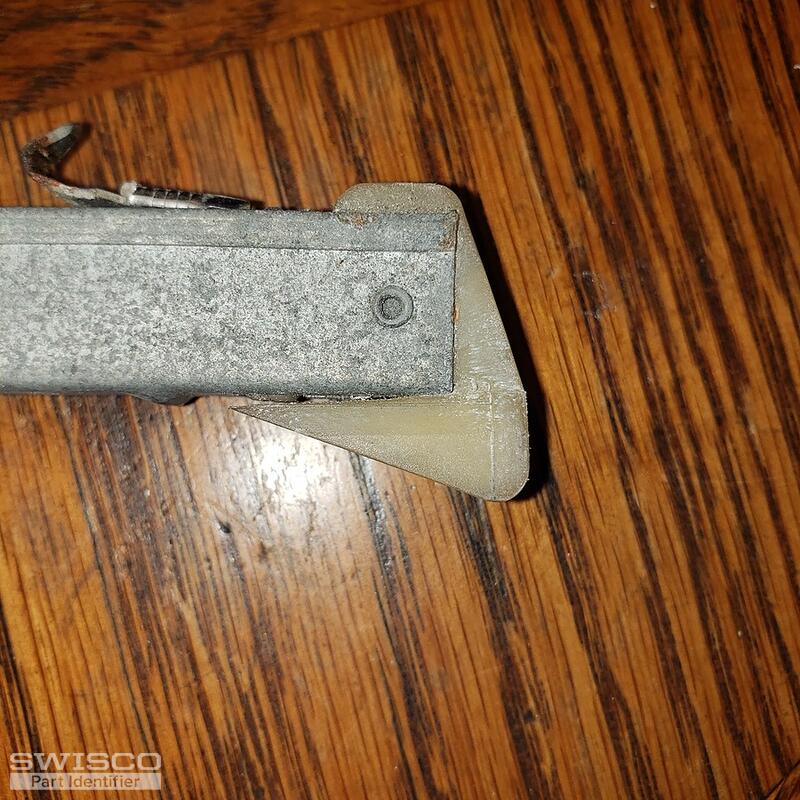

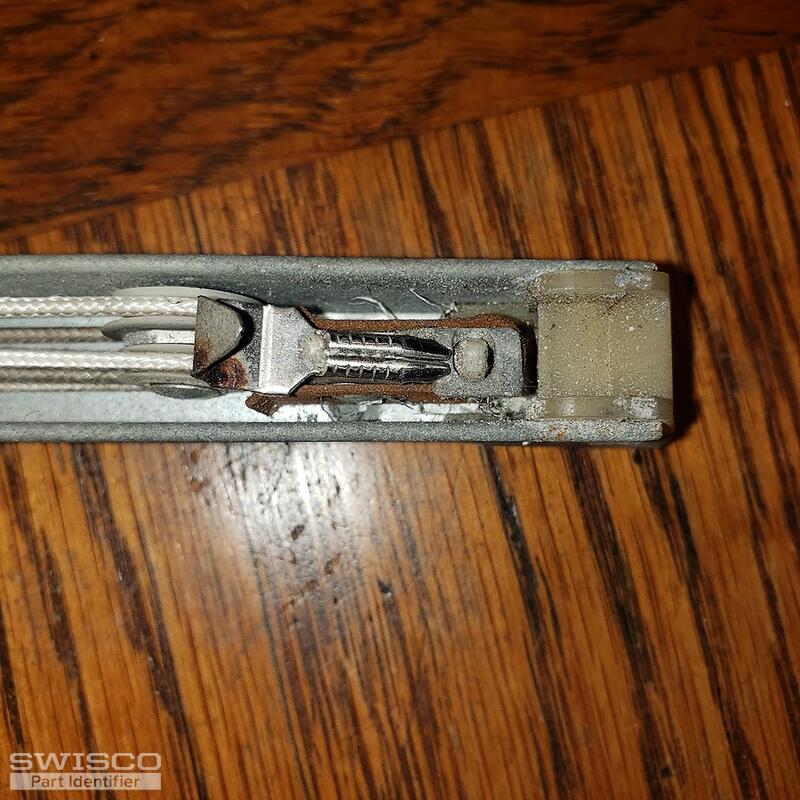

20240630_200706_resized 20240630_200712_resized 20240630_200719_resized 20240630_200729_resized 20240630_200733_resized
5 user uploaded images
3 Replies
Jasmine
Jasmine from SWISCO
Jul 2, 2024 10:52 am
SWISCO
EXPERT

Thanks for posting! I am confident we can supply you with a replacement for the channel balances you need but I'll need to see just one more detail to confirm the correct replacement.

May I see a photo of the pulley system in the center of the balance? This is where the spring and string meet in the middle of the channel.

Please let me know if you have any questions.

Quick Learner from Fountain Valley CA
Jul 3, 2024 10:09 am
hope this helps.

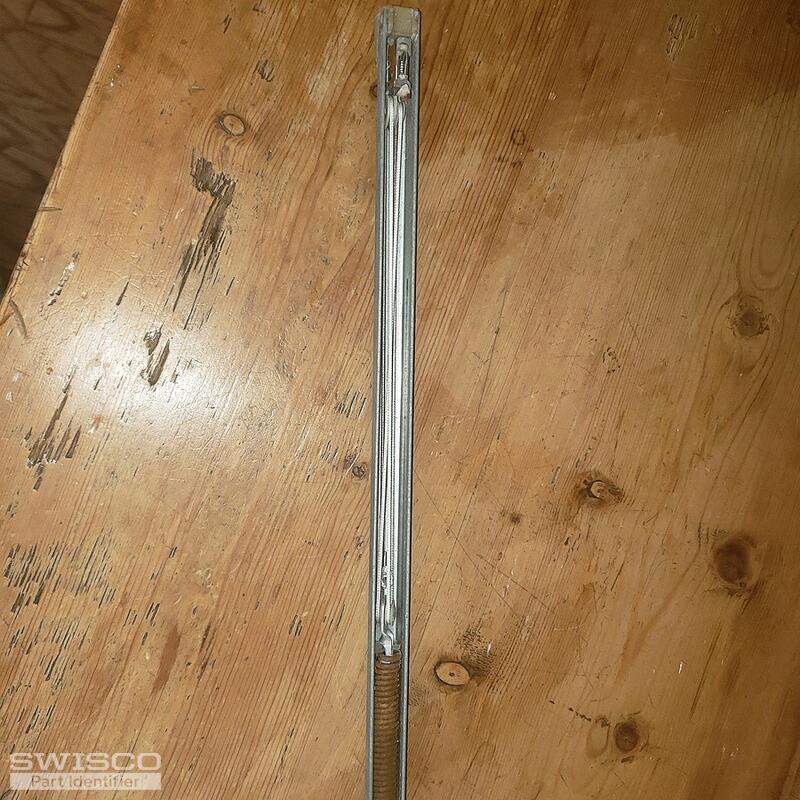

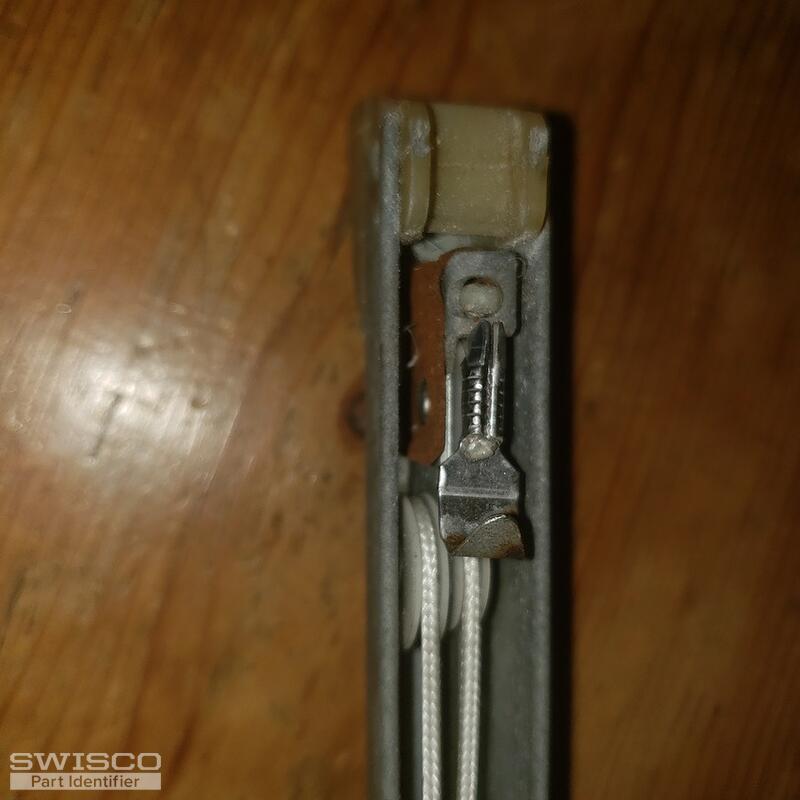

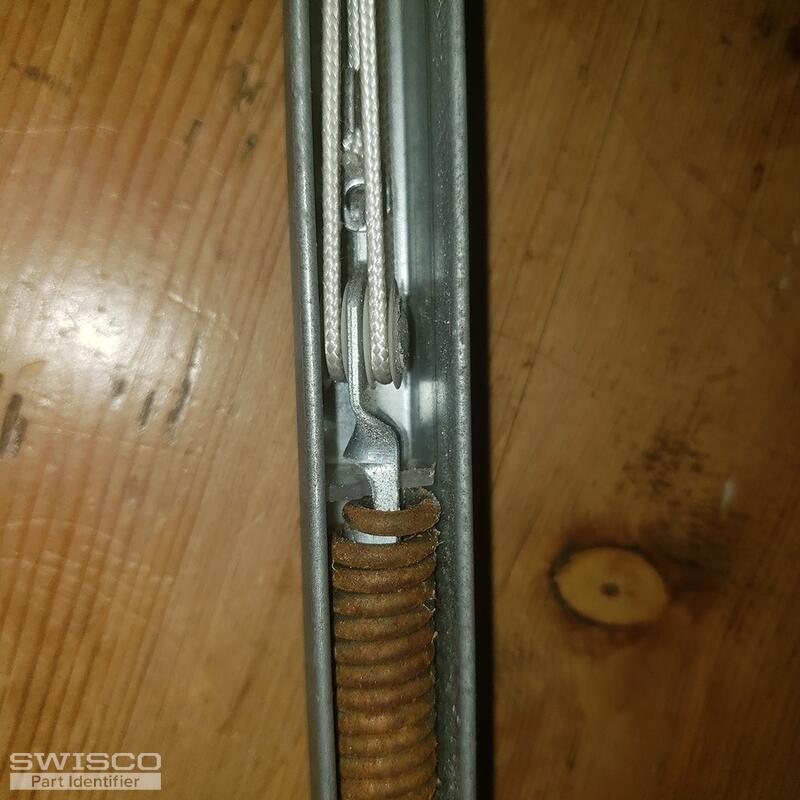

20240702_155408 20240702_155417 20240702_155426
3 user uploaded images
Jasmine
Jasmine from SWISCO
Jul 3, 2024 10:57 am
SWISCO
EXPERT

Thanks for the photos! Your balance resembles either the S351-33 with a 1" shoe or the S390-33 with a 1-1/8" shoe. To determine which of these is the correct replacement, be sure to confirm the dimension for the depth of your shoe.

You'll need the 3250 stamp option.

Comparison of the S351 and S390 balance shoes.
Comparison of the S351 and S390 balance shoes.
